Model Type

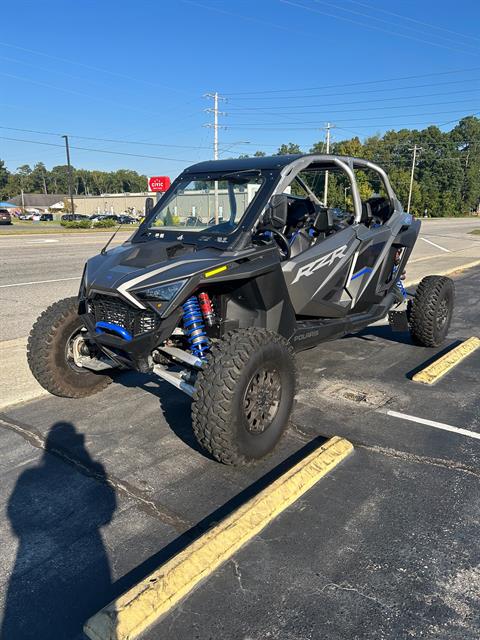

RZR Pro R

Strength

WIDE STANCE

74" stance for stabilityManufacturer spec

LEADING SUSPENSION

29" of usable travelManufacturer spec

MAX CLEARANCE

16" of ground clearanceManufacturer spec

Brakes/Wheels/Tires

Brakes

Front - 4-Wheel Hydraulic Disc with Triple-Bore Calipers, Aluminum Top Hat Rotor Rear - 4-Wheel Hydraulic Disc with Dual-Bore Calipers, Aluminum Top Hat Rotor Parking - Park In-TransmissionManufacturer spec

Wheels

Painted Cast Aluminum Rim with 5-Lug Pattern Front / Rear Wheel Size - 15 x 7Manufacturer spec

Tires

Front / Rear- 32 x 10-15 Maxxis Rampage Fury, 8-Ply RatedManufacturer spec

Dimensions

Length

Overall - 165.5 in. (420 cm)Manufacturer spec

Height

Overall - 76.5 in. (194 cm)Manufacturer spec

Width

Overall - 74 in. (188 cm)Manufacturer spec

Electrical

Lighting

Signature White LED, Low / High and Red LED Tail / Brake Lights, Front, Rear, and Interior Accent LightingManufacturer spec

Electrical System

RIDE COMMAND+, High Output External 1700WManufacturer spec

Engine

Fuel System

Electronic Fuel InjectionManufacturer spec

Operational

Front Suspension

Light Weight Boxed Dual A-Arm with 3 piece Stabilizer Bar Usable Travel - 27 in. (68.6 cm) Wheel Travel - 22.25 in. (56.5 cm), Unitized Hubs Shocks - FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound)Manufacturer spec

Suspension

DYNAMIX DV with Selectable Ride Modes - Comfort, Rock, Track, Baja MaxLinkManufacturer spec

Steering

Electronic Power - Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack, Race Inspired Steering Wheel with Tilt and Telescoping Adjustment, DYNAMIX DV with Integrated EPS Modes and RIDE COMMAND Push Button ControlsManufacturer spec

Travel Distance

*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plateManufacturer spec

Other

Includes

Polaris Pulse System, In-Dash Charge Port, 1 Front DC Accy Ports, 1 Rear DC Accy Port, Polaris P.A.S.S., Painted Aluminum Roof, Colored Toe Link, Hood Scoop, Mud and Rock Guards, User Selectable Throttle Modes (Sport, Rock, and Race)Manufacturer spec

Cargo Box Length

29.5 in. (75 cm)Manufacturer spec

Cargo Box Height

8.1 in. ( 20.6 cm)Manufacturer spec

Cargo Box Width

23.8 in. (60.5 cm)Manufacturer spec

Cargo Box Capacity

300 lb. (136.1 kg)Manufacturer spec

Cargo Box

System - Lock and Ride® Convertible Fold Flat Rear Seat Storage with Integrated Tie Down Points, 27.7 x 52.8 x 19.5 in. (70.4 x 134.1 x 49.53 cm) Factory Equipped Cargo LinerManufacturer spec

Capacity

Payload - 900 lb. (408 kg)Manufacturer spec

Safety Features

Doors - Front and Rear Full Doors Front BumperManufacturer spec
