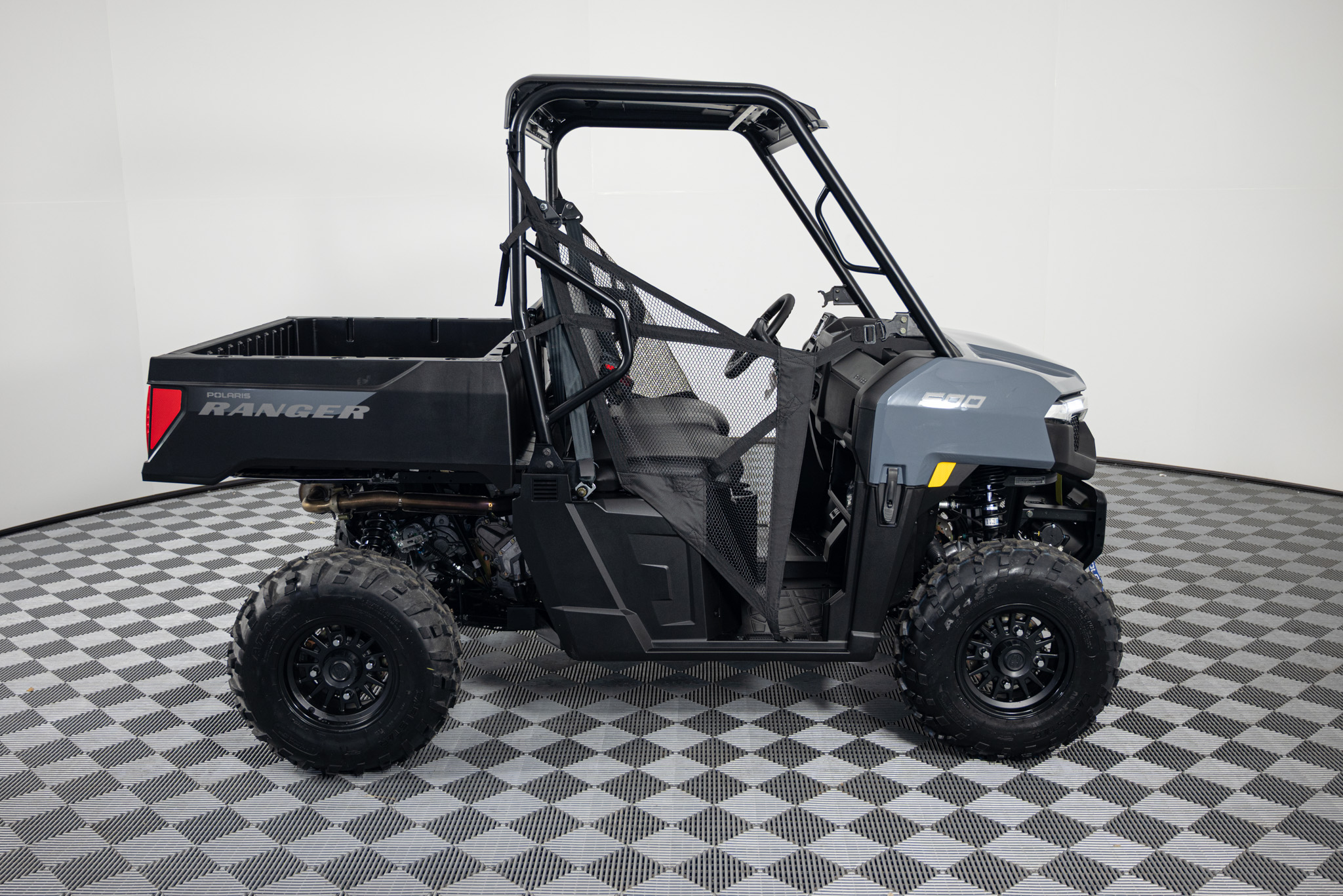

2026 Polaris RANGER 500 — photo 1 of 11
1 / 11

Specs

New or used
New
Availability
In stockDealer: Available
Location
TWL Powersports
Colour
STEALTH GRAY
Engine
Single-cylinderDealer: 1
Horsepower
28 hp
Cylinders
1
Engine cycle
Four-strokeDealer: 4-stroke single cylinder DOHC
Cooling
Liquid-cooledDealer: Liquid
Fuel
Gas
Transmission
Automatic
Wheelbase
73.2 inDealer: 73.2 in (186 cm)
Ground clearance
10 inDealer: 10 in (25.4 cm)

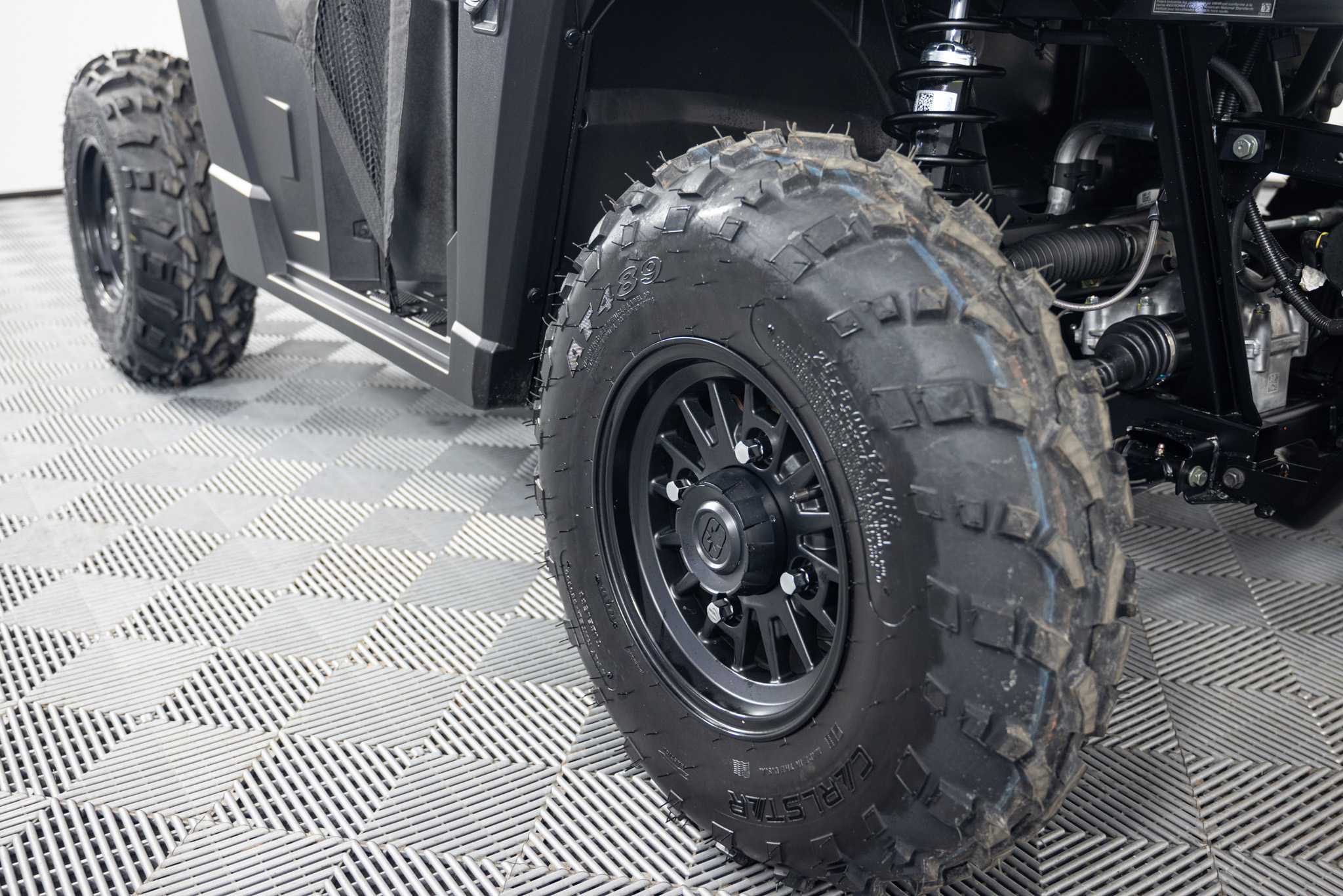

Front tyre
25 x 8-12; Carlstar 489
Rear tyre
25 x 10-12; Carlstar 489
Dry weight
1,155 lbDealer: 1,155 lbs (524 kg)
Fuel capacity
9.5 galDealer: 9.5 gal (35.9 L)
Seating

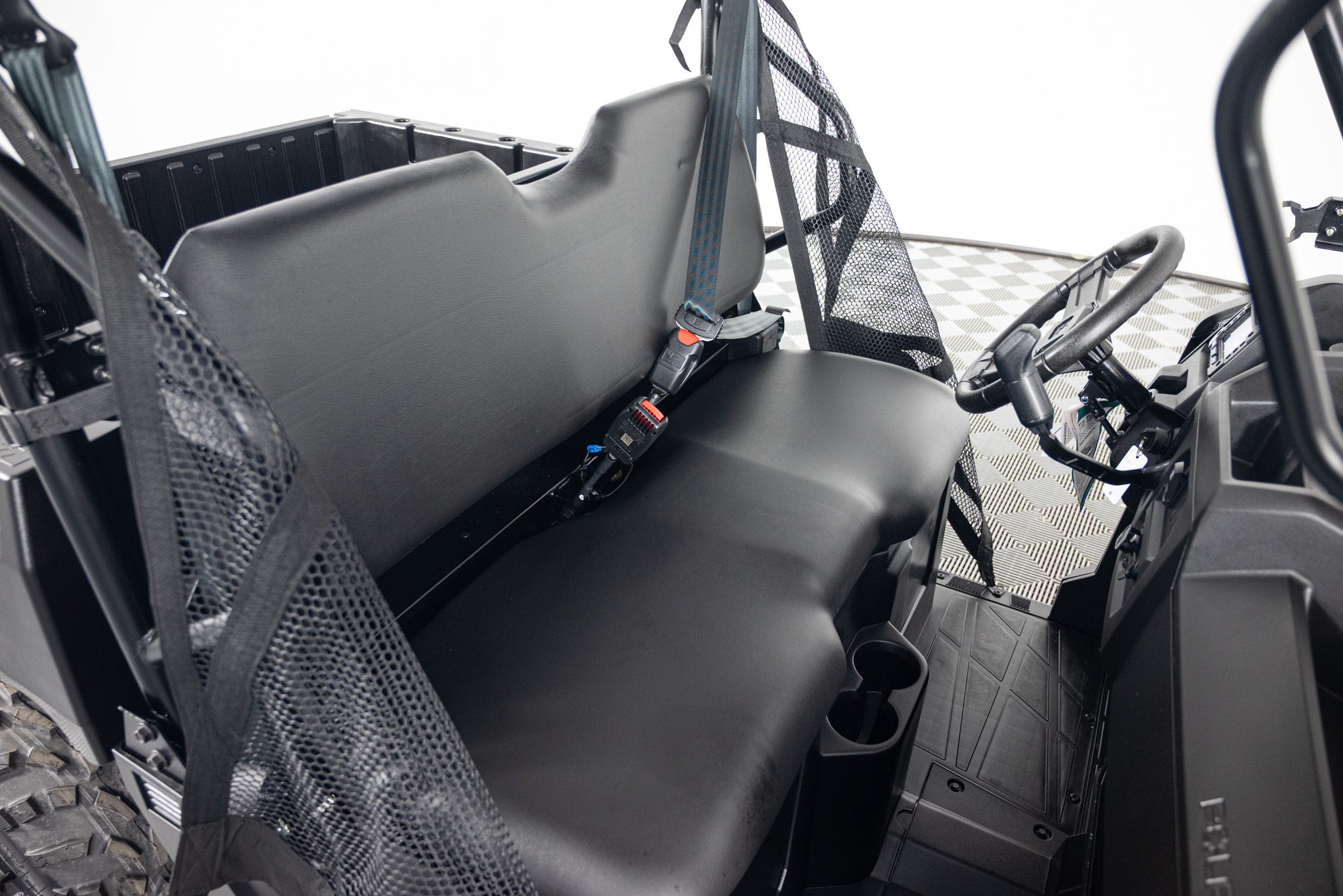

2Dealer: 2-person, flip-up bench seat with 3-point harness.
Warranty
1- year
Winch
YesDealer: 2,500-lb. winch with wired remote
Stock #
60453
All details from the dealer (29)

Description

MAKES WORK EASIER
Save time and energy on property tasks thanks to the dump box, towing capability and standard winch on RANGER 500.

Info

VIN
3NSCCA5A2TE186176

Specifications

Body Style
UTILITY
Wheels
4
Engine Disp to Wgt
567 cc
Fuel System
Electronic fuel injection
Battery
Electronic fuel injection
Width
Bed Box: 46.2 in (117.3 cm) | Overall: 58.5 in (148.6 cm)
Cargo Bed Capacity
Box: 500 lbs.. (227 kg)
Weight (Wet)
Curb: 1,210 lbs.. (549 kg)
Max Payload
1,000 lbs. (453.6 kg)
Tow Capacity
1,500 lbs.. (680 kg)
Front Brake
4-wheel hydraulic disc
Rear Brake
4-wheel hydraulic disc
Suspension (Front)
MacPherson strut 9 in (22.9 cm) travel
Suspension (Rear)
Dual A-arm, IRS 10 in (25.4 cm) travel

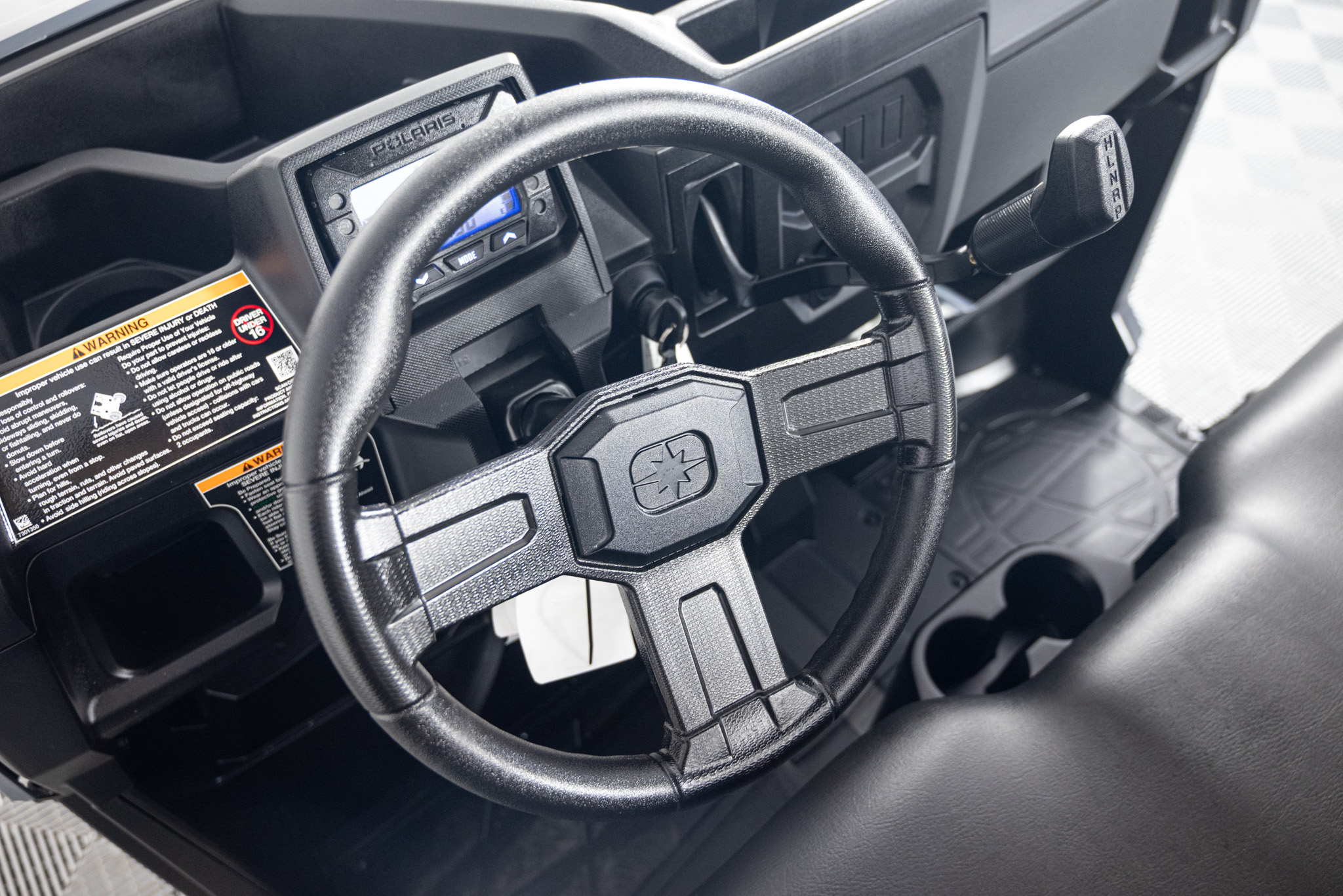

Steering
Tilt adjustment
Turning Radius
13.5 ft (4.2 m)
Height
Bed Box: 11.25 in (28.6 cm) | Overall: 74.8 in (190 cm)
Lighting
LED headlights and taillights
Electrical System
DC outlet, 660-W stator charging system
Cargo System

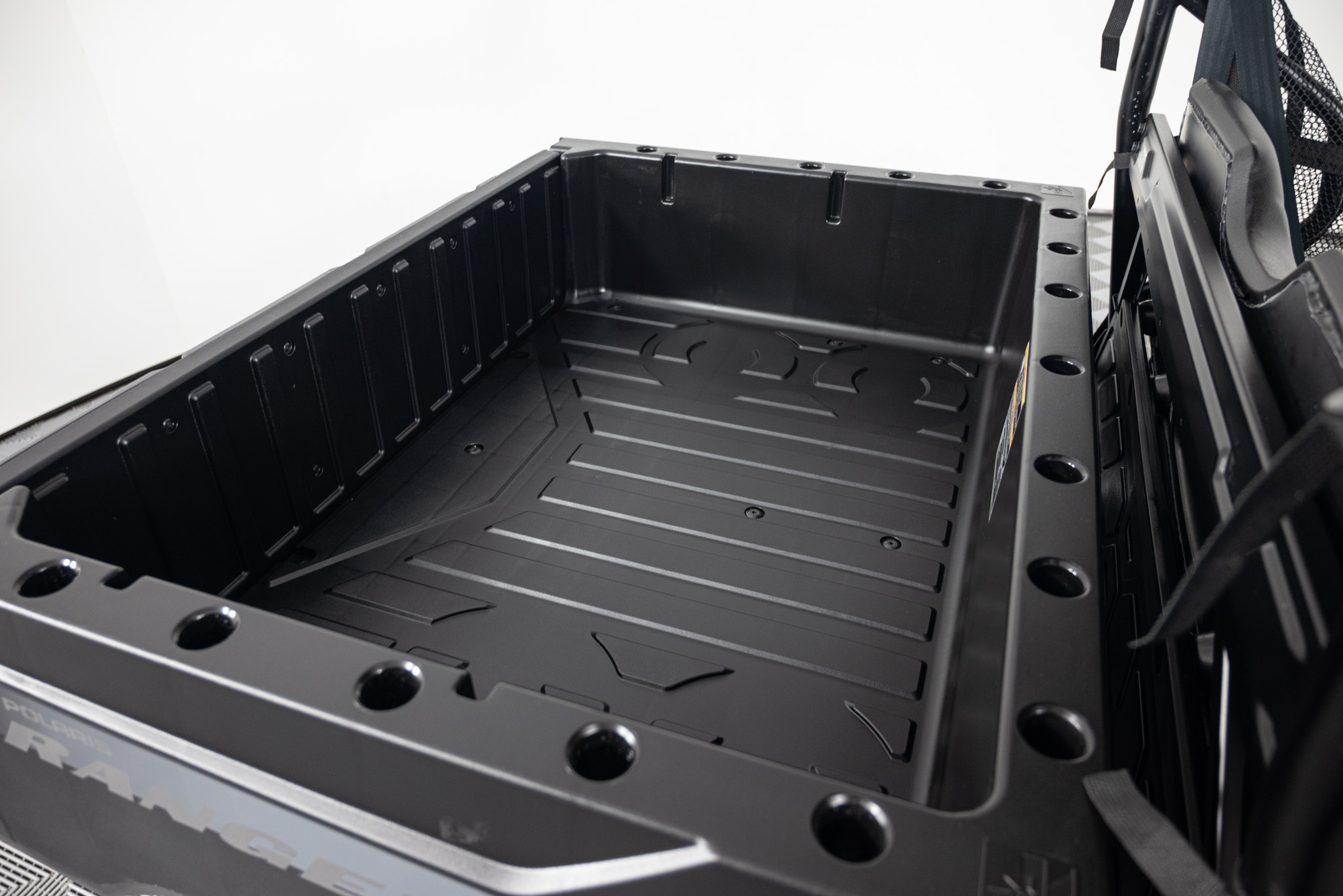

Gas-assist dump box with Lock & Ride accessory integration
Hitch
Standard 2 in (5 cm) receiver
Door Type
Cab nets
Vehicle Protection
Steel front bumper with integrated winch mount
Speed Limiting

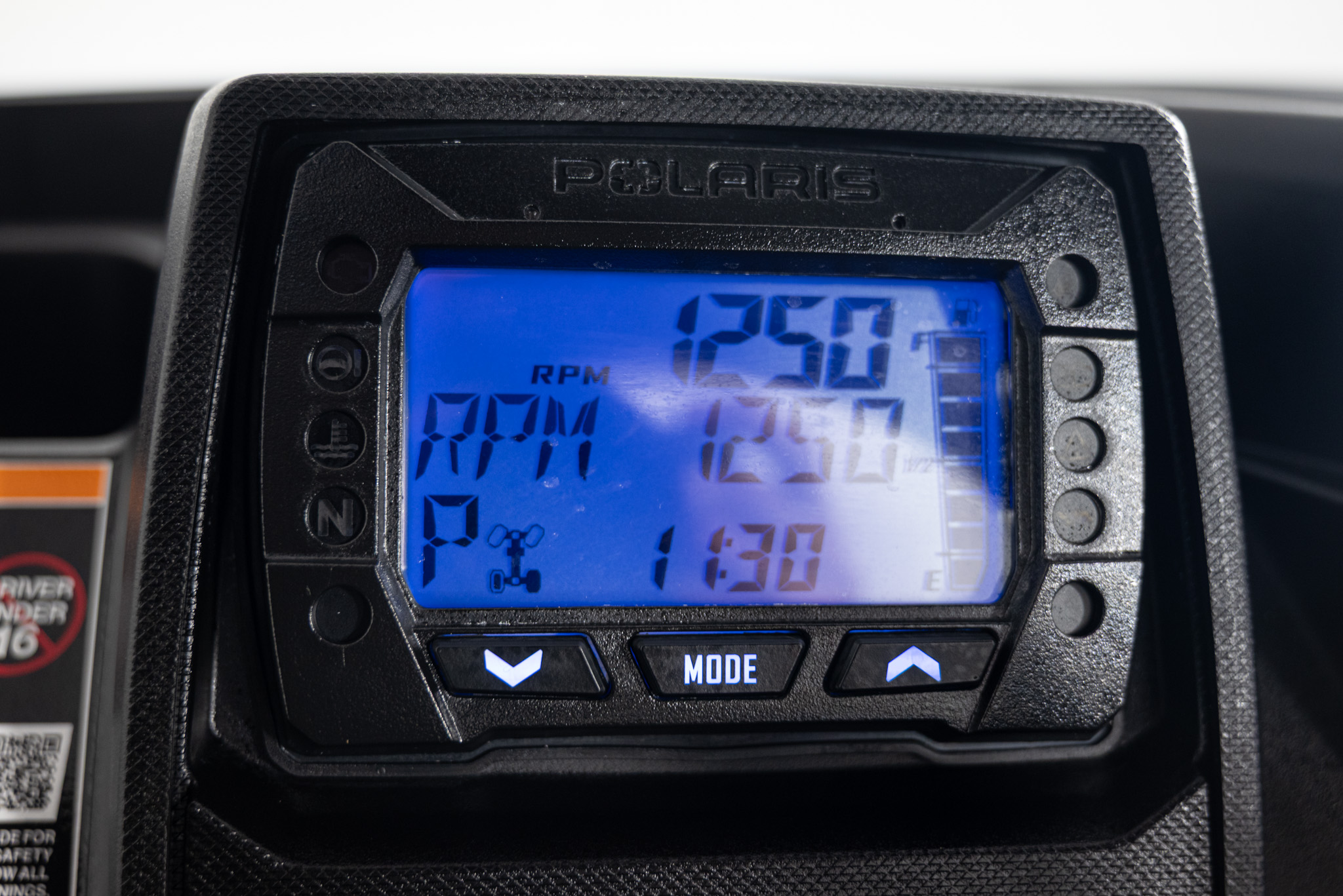

Speed limiting controlled in gauge
Parking Brake
Park in-transmission
Length
Bed Box: 32.6 in (82.7 cm) | Overall: 110 in (279.4 cm)
Drive Train
Drive System Type: All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode
