Model Type

RZR PRO R

Brakes/Wheels/Tires

Brakes

Front / Rear - 4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers, aluminum top hat rotor Parking - Park in-transmissionManufacturer spec

Wheels

5-lug, 15 in. cast aluminum rim with painted beadlock Front / Rear Size - 15 x 7Manufacturer spec

Tires

Front / Rear - 32 x 10-15 Pro Armor Trekker Ply rating - 8-plyManufacturer spec

Dimensions

Length

Overall - 165.5 in. (420 cm)Manufacturer spec

Height

Overall - 74 in. (188 cm)Manufacturer spec

Width

Overall - 76.5 in. (194 cm)Manufacturer spec

Turning Radius

25 ft.Manufacturer spec

Drivetrain

Drive

Modes - Rock, Sport, RaceManufacturer spec

Electrical

Lighting

Signature animated RZR fang accent, white LED low / high and red LED tail / brake lights, animated interior accentManufacturer spec

Electrical System

High-output 1,700W charging system @ 3,000 rpmManufacturer spec

Engine

Fuel System

Electronic fuel injectionManufacturer spec

Operational

Front Suspension

Lightweight boxed dual A-arm with 3-piece stabilizer bar and 27 in. (68.6 cm) usable travel, 22.25 in. (56.5 cm) wheel travel, unitized hubs Shocks - FOX 3.0 Live Valve X2 internal bypass (electronically controlled compression and rebound)Manufacturer spec

Suspension

Electronic suspension control system - Polaris Dynamix DV 3.0 (Dual valve control) Semi-active compression and rebound damping system with selectable ride modes: Comfort, Rock, Track, BajaManufacturer spec

Steering

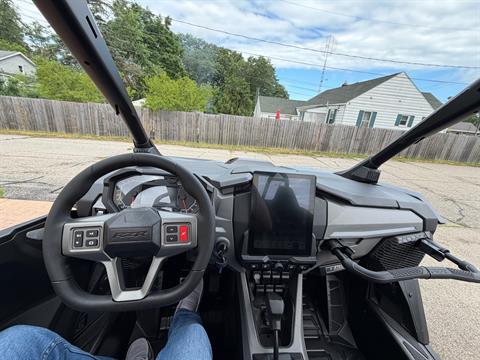

Race-inspired steering wheel with tilt and telescoping adjustment, DYNAMIX and RIDE COMMAND push-button controls Electronic power steering - Rack-mounted high-assist electronic power steering with quick-turn rackManufacturer spec

Other

Cargo Box Length

29.5 in. (75 cm)Manufacturer spec

Cargo Box Height

8.1 in. (20.6 cm)Manufacturer spec

Cargo Box Width

23.8 in. (60.5 cm)Manufacturer spec

Cargo Box Capacity

300 lb. (136 kg)Manufacturer spec

Cargo Box

System - Lock & Ride, Factory-equipped cargo liner, Convertible fold-flat rear seat storage with integrated tie-down points, 27.7 x 52.8 x 19.5 in. (70.4 x 134.1 x 49.53 cm)Manufacturer spec

Capacity

Payload - 900 lb. (408 kg)Manufacturer spec

Safety Features

Rear camera - Digital Security - Polaris P.A.S.S anti-theft system Cab components - Half doors, aluminum roof Vehicle protection - Bull bumper Door type - Half doorsManufacturer spec
