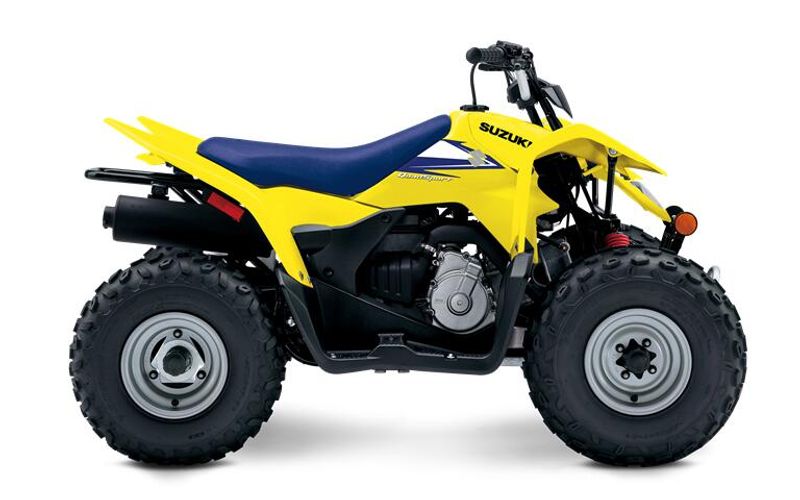

2026 Suzuki QUADSPORT Z90 — photo 1 of 24
1 / 24

Specs

New or used
New
Colour
YELLOW
Displacement
124 ccManufacturer specDealer: 124cc, 4-stroke, air-cooled, single cylinder, SOHC
Cylinders
1Manufacturer specDealer: 124cc, 4-stroke, air-cooled, single cylinder, SOHC
Engine cycle
Four-strokeManufacturer specDealer: 124cc, 4-stroke, air-cooled, single cylinder, SOHC
Cooling
Air-cooledManufacturer spec
Transmission
AutomaticManufacturer spec
Drive
2WDDealer: 4X2
Hours
0 hrs
Mileage
3 mi
Seat height
25.6 inManufacturer specDealer: 650 mm (25.6 in.)
Wheelbase
39.6 inManufacturer specDealer: 1005 mm (39.6 in.)
Ground clearance
5.9 inManufacturer specDealer: 150 mm (5.9 in.)
Wet weight
279.99 lbManufacturer specDealer: 127 kg (280 lb.)
VIN
RFDAD41BXT1100499
Stock #
SU00499
All details from the dealer (22)

ngine

Bore x Stroke
45.5 mm x 55.2 mm (1.791 in. x 2.173 in.)Manufacturer spec
Compression Ratio
9.5:1Manufacturer spec
Fuel System
Mikuni VM16, single carburetorManufacturer spec
Starter
Electric and back-up recoilManufacturer spec
ubrication
Wet sumpManufacturer spec

Drivetrain

Clutch
Dry shoe, automatic, centrifugal typeManufacturer spec
Driven Wheels
2WDManufacturer spec
Final Drive
Chain, RK530, 60 linksManufacturer spec

Chassis

Suspension Front
Independent, swing axle, coil spring, oil dampedManufacturer spec
Suspension Rear
Swingarm type, coil spring, oil dampedManufacturer spec
Brakes Front
Twin drum brakesManufacturer spec
Brakes Rear
Single drum brakeManufacturer spec
Tires Front
AT19 × 7-8, tubeless type x 2Manufacturer spec
Tires Rear
AT19 × 7-8, tubeless type x 2Manufacturer spec
Fuel Tank Capacity
1.6 US gal. (6.0 L)Manufacturer spec

Electrical

Ignition
Electronic ignition (CDI)Manufacturer spec
Headlight
N/AManufacturer spec
Tail Light
N/AManufacturer spec

Dimensions

Overall Length
2175 mm (85.6 in.)Manufacturer spec
Overall Width
875 mm (34.4 in.)Manufacturer spec
Overall Height
915 mm (36.0 in.)Manufacturer spec
