Badge

On Sale

Model Type

Motocross

Model Code

NA

General Information

Model Code

NAManufacturer spec

Brakes/Wheels/Tires

Brakes

Front - Brembo twin 0.94 in. (24 mm) piston, 10.24 in. (260 mm) disc Rear - Brembo single 1.02 in. (26 mm) piston, 8.66 in. (220 mm) discManufacturer spec

Wheels

Front - 21 x 1.6 in. Rear - 19 x 2.15 in.Manufacturer spec

Rims

D.I.D DirtstarManufacturer spec

Tires

Front - 80 / 100 - 21 Rear - 110 / 90 - 19Manufacturer spec

Dimensions

Height

Without mirror - 50 in. (1,270 mm)Manufacturer spec

Width

Width handlebars - 32.91 in. (836 mm)Manufacturer spec

Electrical

Instrumentation

Display and functions - Hour Meter, Multifunction switch cubes MX Tune Pro smartphone app​Manufacturer spec

Advanced Electronics

Standard Wi-Fi Comm moduleManufacturer spec

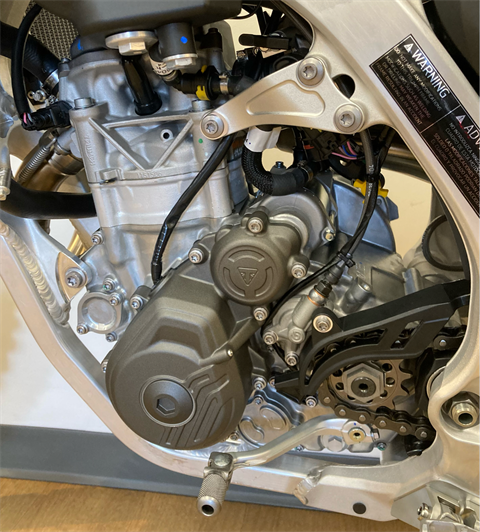

Engine

Bore x Stroke

3.74 x 2.5 in. (95 x 63.4 mm)Manufacturer spec

Compression Ratio

13.1:1Manufacturer spec

Clutch

Steel wet multi-plate belleville spring, Hydraulic actuationManufacturer spec

Fuel System

Dellorto throttle body, Athena EMSManufacturer spec

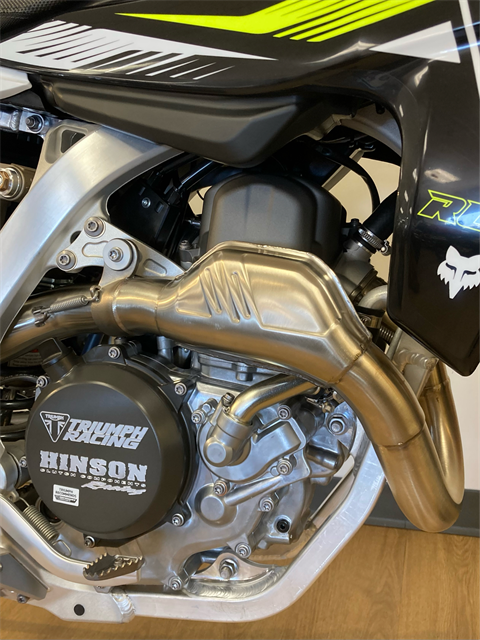

Exhaust

Single silencerManufacturer spec

Operational

Frame

Aluminum, SpineManufacturer spec

Front Suspension

KYB 1.9 in. (48 mm) coil spring fork, Compression / Rebound adjustment, 12.20 in. (310 mm) travelManufacturer spec

Rear Suspension

KYB coil, Compression adjustment (H and L Speed), Rebound adjustment, 12 in. (305 mm) travel Swingarm - Aluminum fabricationManufacturer spec

Rake

27.4 ºManufacturer spec

Trail

4.57 in. (116 mm)Manufacturer spec

Seat

Gripper coverManufacturer spec

Other

Includes

Front disc guard, ODI Podium Flight RC4 Signature bars with half waffle lock on grips and bar pad, Ricky Carmichael signature engine tune, Triumph Racing Hinson clutch cover, XTrig Holeshot deviceManufacturer spec
