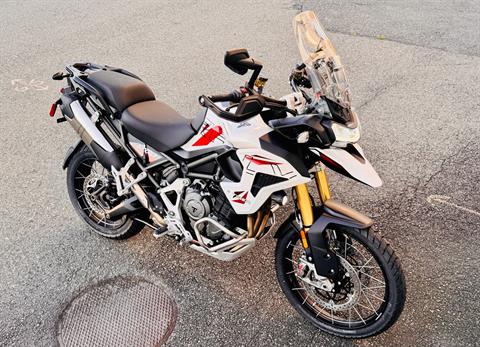

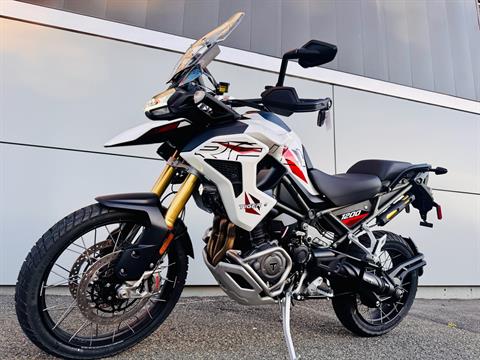

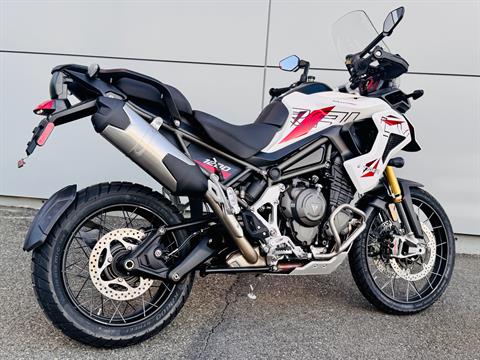

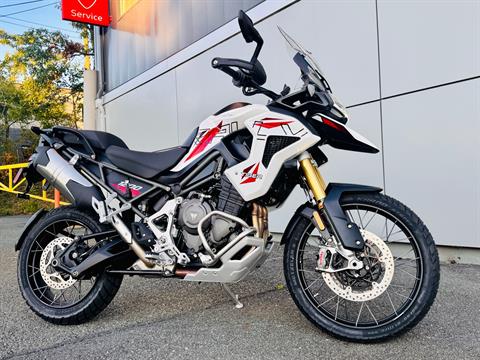

Crystal White • New Motorcycles

Available at

MOMS Foxboro

Model Type

Tiger

Model Code

NA

Performance

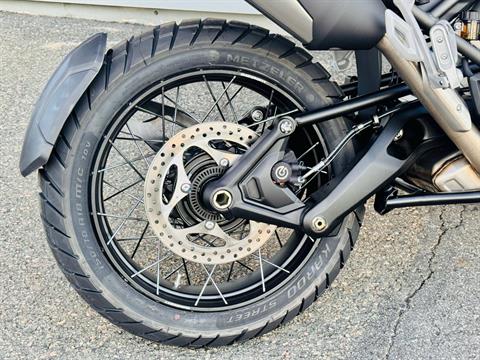

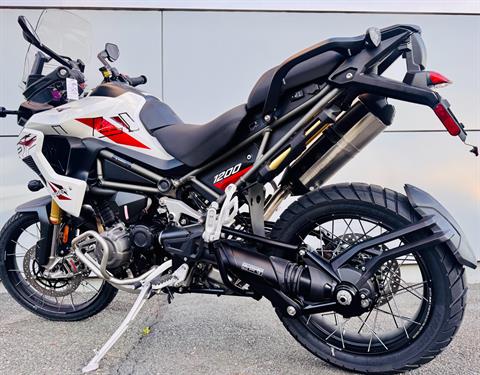

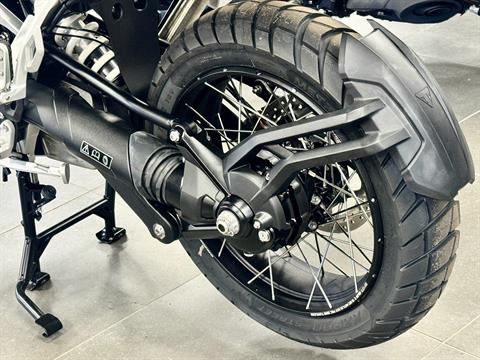

TRI-LINK SWINGARM

Combining low weight with strength and durability, the unique Tri-link swingarm offers all the low-maintenance benefits of a shaft drive and a standard in manageability, feel and controlManufacturer spec

General Information

Model Code

NAManufacturer spec

Brakes/Wheels/Tires

Brakes

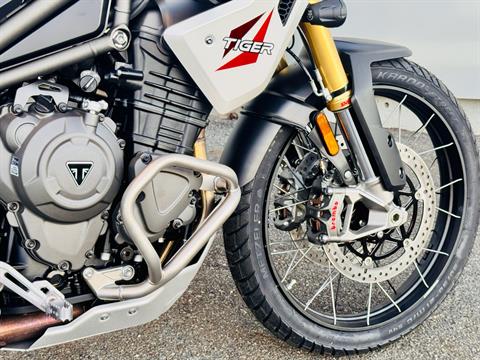

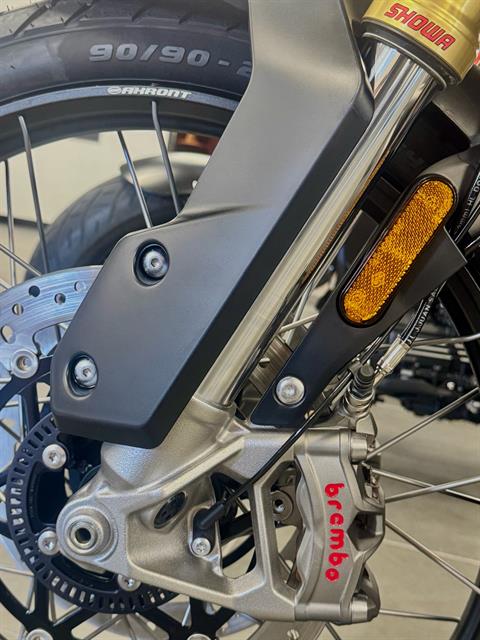

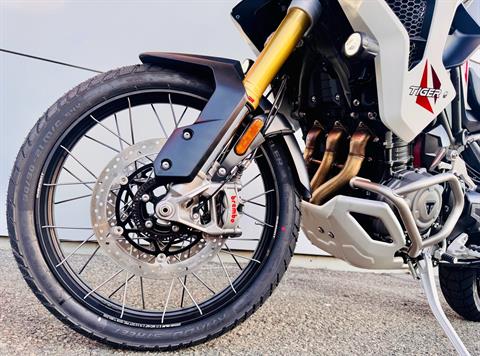

Front - Twin 320 mm floating discs, Brembo M4.30 Stylema monobloc radial calipers, OCABS, Magura HC1 span adjustable radial master cylinder with separate reservoir Rear - Single 282 mm disc, Brembo single piston axial caliper, OCABSManufacturer spec

Wheels

Front - Spoked tubeless, 21 x 2.15 in. Rear - Spoked tubeless, 18 x 4.25 in.Manufacturer spec

Tires

Front - 90 / 90-21 Rear - 150 / 70 R18Manufacturer spec

Dimensions

Height

58 in.Manufacturer spec

Width

33.1 in.Manufacturer spec

Electrical

Instrumentation

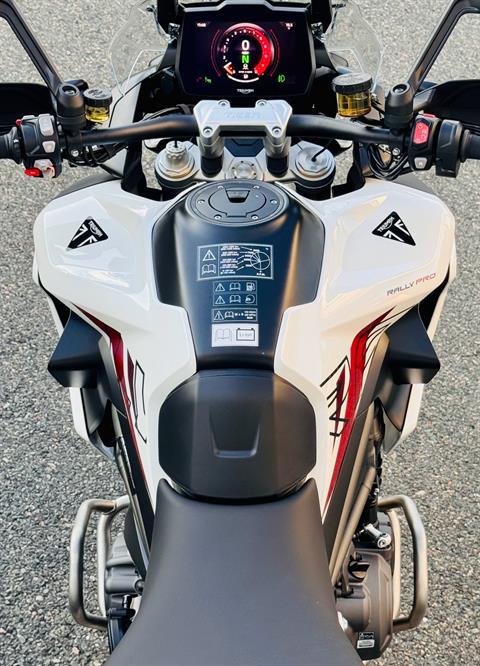

Full-color 7 in. TFT instrument pack with My Triumph Connectivity SystemManufacturer spec

Engine

Bore x Stroke

3.5 x 2.4 in. (90 x 60.9 mm)Manufacturer spec

Compression Ratio

13.2:1Manufacturer spec

Clutch

Hydraulic, wet, multi-plate, slip and assistManufacturer spec

Fuel System

Multipoint, sequential electronic fuel injection with electronic throttle controlManufacturer spec

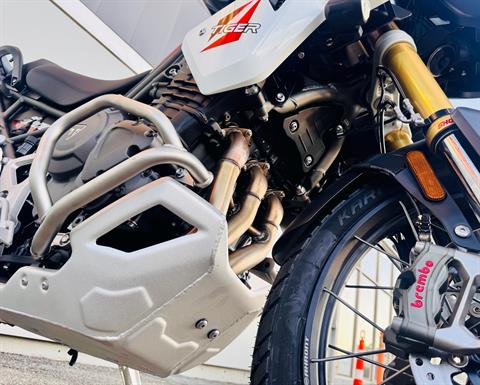

Exhaust

Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencerManufacturer spec

Emissions

Co2 standard - Euro 5+Manufacturer spec

MPG Rating

Fuel consumption - 42.8 mpg (5.5 l / 100 km)Manufacturer spec

Operational

Front Suspension

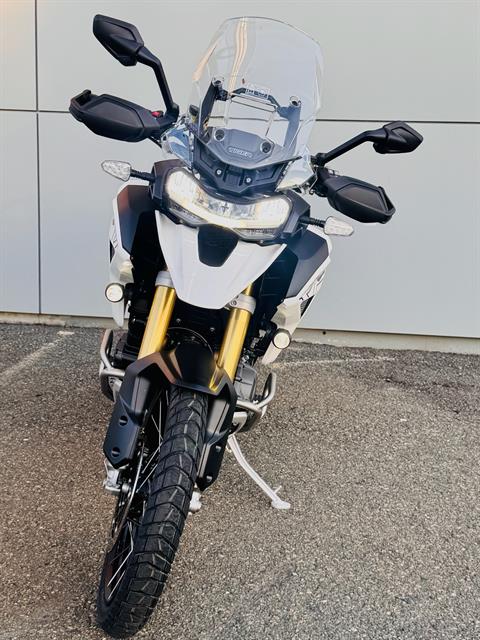

Showa 49 mm upside-down forks, semi-active damping. 220 mm wheel travelManufacturer spec

Rear Suspension

Showa monoshock, with semi-active damping and automatic electronic preload adjustment. 220 mm wheel travelManufacturer spec

Rake

23.7°Manufacturer spec

Trail

4.4 in.Manufacturer spec
