Specs
- New or used
- New
- Availability
- In stock
- Colour
- Medium Green / Black
- Displacement
- 599 ccManufacturer spec
- Cylinders
- 2Manufacturer spec
- Engine cycle
- Two-strokeManufacturer specDealer: 600, 2-Stroke
- Cooling
- Liquid-cooledManufacturer specDealer: Liquid Coolant system capacity - 5.3 or 5.4 qt. Heat Exchanger - Front / Long Tunnel
- Fuel
- GasManufacturer specDealer: Minimum octane - 91
- Fuel capacity
- 10.4 galManufacturer spec
- VIN
- 4UF1S2GG8TT100548
- Stock #
- ARC100548
All details from the dealer (36)
- Badge
- On Sale
- Model Type
- Trail and Utility
- Model Code
- NA
General Information
- Model Code
- NAManufacturer spec
Dimensions
- Length
- Overall chassis - 126 in.Manufacturer spec
- Height
- Overall chassis - 47 in.Manufacturer spec
- Width
- Overall chassis - 48 - 49 in.Manufacturer spec
Engine & Drivetrain
- Bore x Stroke
- 2.9 x 2.75 in. (73.8 x 70 mm)Manufacturer spec
- Fuel System
- Fuel delivery - Dual Stage InjectionManufacturer spec
- Starting
- Push-Button ElectricManufacturer spec
- Ignition
- Digitally controlled CDI Engine stator output - 270W @ 3,000 rpmManufacturer spec
- Lubrication
- Electronic injectionManufacturer spec
- Drive System
- AC Trail Belt DriveManufacturer spec
- Drive Clutch
- ADAPTManufacturer spec
- Driven Clutch
- ADAPTManufacturer spec
- Drive Sprocket
- 9 Tooth, 2.86 Pitch, InvoluteManufacturer spec
- Clutch Calibration
- 0 - 5,000 ft.Manufacturer spec
- Reverse
- Push-Button engineManufacturer spec
- Transmission
- Gearing - 27 / 60 Chain pitch - BeltManufacturer spec
- Exhaust
- APV with tuned pipe, Pipe sensor, Stainless steel manifold & mufflerManufacturer spec
- Brakes
- Stealth hydraulic master cylinder Standard discManufacturer spec
- Oil Capacity
- 3.0 qt.Manufacturer spec
Operational
- Handlebar
- HookedManufacturer spec
- Instrumentation
- Type of Gauge - Sport Speedometer, tachometer, odometer, fuel and hours - Digital Oil - LCD Icon Coolant - Digital bar graphManufacturer spec
- Seating or Rider capacity
- TrailManufacturer spec
- Skis
- Type - Trail Width - 6 in.Manufacturer spec
- Ski Stance
- 41.5 - 42.5 in. adjustableManufacturer spec
- Carbide
- Runner type - Long Dual Runner 4-Bolt with CarbideManufacturer spec
- Track Type
- Ripsaw IIManufacturer spec
- Track LxWxH
- 137 x 15 x 1.25 in.Manufacturer spec
- Pitch
- 2.86 in.Manufacturer spec
Other
- Includes

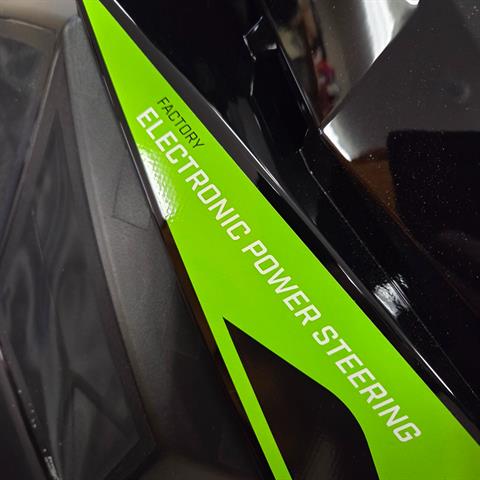

- Standard accessories - Electronic Power Steering (EPS), 12V Outlet, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Tether Switch, VisorPlug-InManufacturer spec
- Safety Features
- Lighting - LED Standard accessories - Sport Front Bumper Windshield - 5.5 in. low heightManufacturer spec
Suspension
- Shocks
- Ski / Front track / Rear track - AC5SManufacturer spec
- Front Suspension
- AWS 42 Sway Bar Travel - 8.2 in.Manufacturer spec
- Rear Suspension
- SLIDE-ACTION with 3 wheel rear axle assembly, Coupling blocks, Torque-sensing link rear arm & adjustable torsion springs Travel - 13.5 in.Manufacturer spec
From the dealer's page

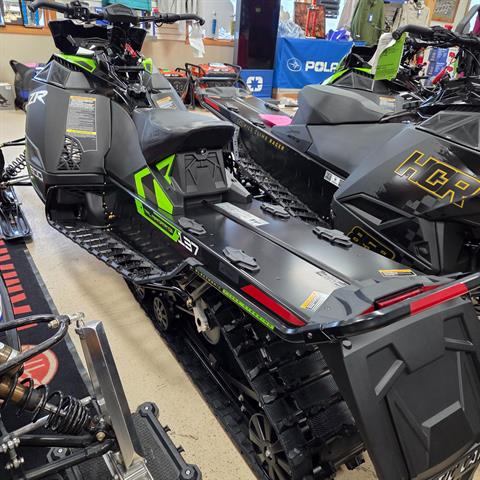

The ZR® delivers responsive handling, solid power and everything you need for a full day of trail domination. It’s built for riders who want lightweight control without sacrificing ride quality. Confident, capable and ready for anything.
