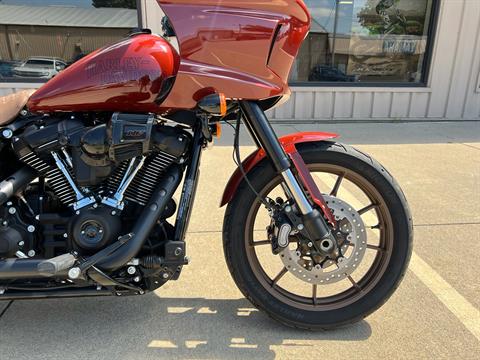

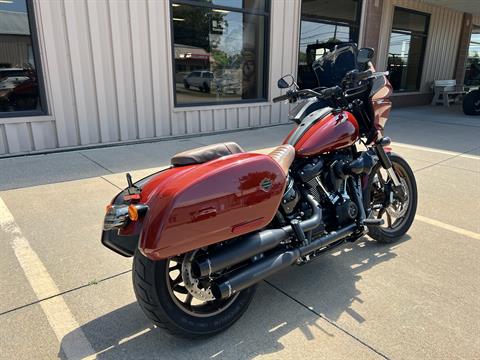

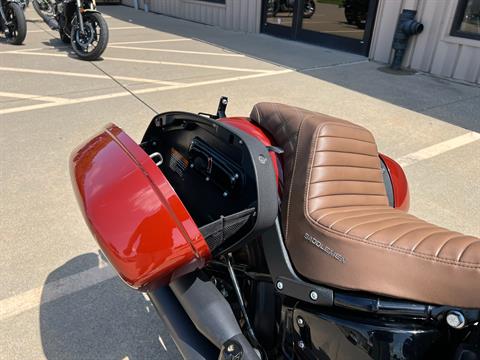

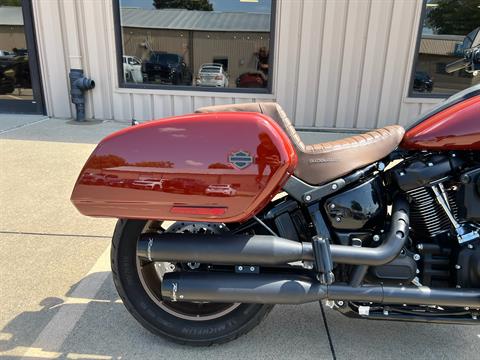

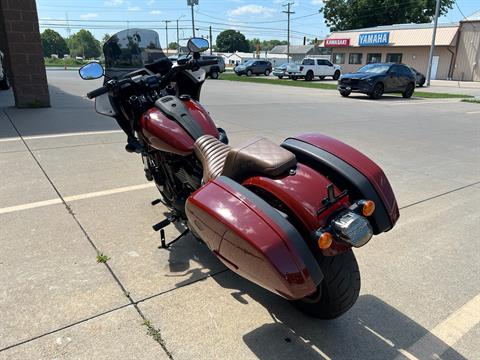

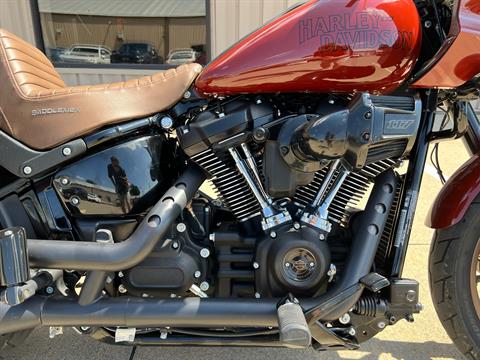

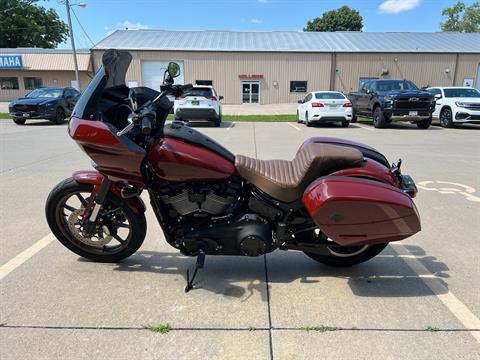

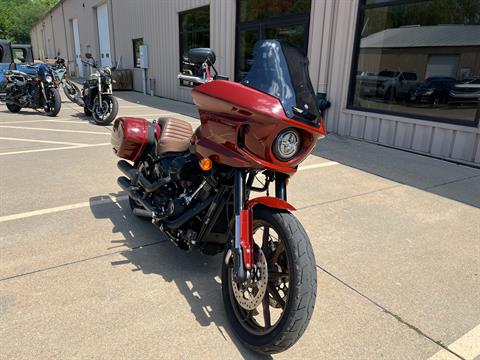

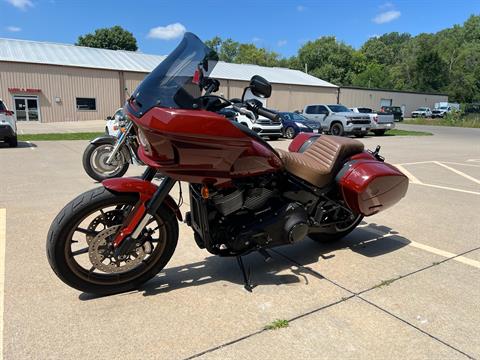

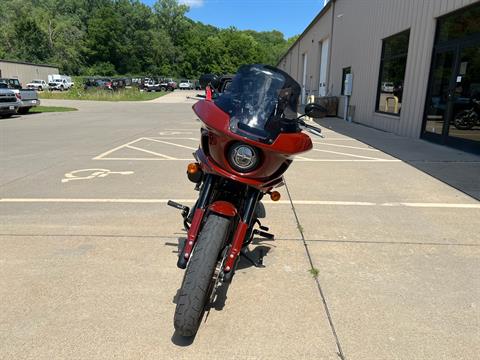

2024 Harley-Davidson Low Rider ST — photo 1 of 18
1 / 18

Specs

New or used
Used
Availability
In stock
Colour
Red Rock
Available colours
Billiard Gray Vivid Black Red RockManufacturer spec
Horsepower
103 hpManufacturer specDealer: 103 hp (77 kW) @ 4,750 rpm
Torque
125 lb-ftManufacturer specDealer: 125 ft. lb. (169 Nm)2 @ 3,500 rpm Testing method - J1349
Displacement
1,923 ccManufacturer specDealer: 1,923 cc (117 ci)
Transmission
ManualManufacturer specDealer: Capacity - 1 qt. (0.95 l) 6-Speed Cruise Drive®
Final drive
BeltManufacturer spec
Mileage
13,751 mi
Seat height
27 inManufacturer specDealer: Laden - 27 in. (686 mm)7 Unladen - 28.3 in. (720 mm)
Wheelbase
63.6 inManufacturer specDealer: 63.6 in. (1,615 mm)
Ground clearance
5.9 inManufacturer specDealer: Static - 5.9 in. (150 mm) Lean Angle Testing Method - J1168 Right / Left Lean Angle - 31.3°
Fuel capacity
5 galManufacturer specDealer: 5 gal. (18.9 l) Reserve, Fuel Injection (warning light) - 1 gal. (3.8 l)
Battery
12 kWhManufacturer specDealer: Sealed, maintenance-free, absorbed glass mat (AGM), 12V, 17.5 Ah, 310 CCA @ 0°F Charging - Three-phase, 42A system (390W @13V, 1000 rpm, 546W max power @ 13V, 2000 rpm) Starting - 1.6 kW electric with solenoid shift starter motor engagement
Model code
FXLRST
Warranty
24 months (unlimited mileage)7 Service Interval - First 1,000 mi. (1,600 km), every 5,000 mi. (8,000 km) thereafter8Manufacturer spec
VIN
1HD1YXZ12RB011924
Stock #
1924
All details from the dealer (28)
Badge
On Sale
Model Type
Cruiser

Brakes/Wheels/Tires

Wheels

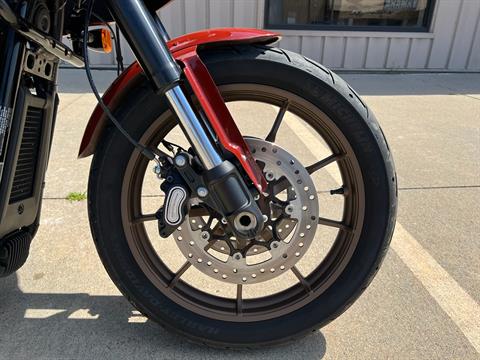

Front / Rear Type - Dark bronze, Radiate cast aluminum9 Front Diameter - 19 in. (483 mm) Front Width - 2.5 in. (64 mm) Rear Diameter - 16 in. (406 mm) Rear Width - 5 in. (127 mm)Manufacturer spec
Tires
Front / Rear Type - Michelin® Scorcher 31 Front / Rear Model - Scorcher 31 Front - 110 / 90B19, 62H, BW Rear - 180 / 70B16, 77H, BWManufacturer spec

Dimensions

Length
93.1 in. (2,365 mm)Manufacturer spec
Height
Overall - 51.2 in. (1,300 mm)Manufacturer spec
Width
Overall - 34.3 in. (870 mm)Manufacturer spec

Drivetrain

Primary Drive
Chain, 34 / 46 ratioManufacturer spec
Chain
Primary Case Capacity - 1.25 qt. (1.18 l)Manufacturer spec

Electrical

Instrumentation

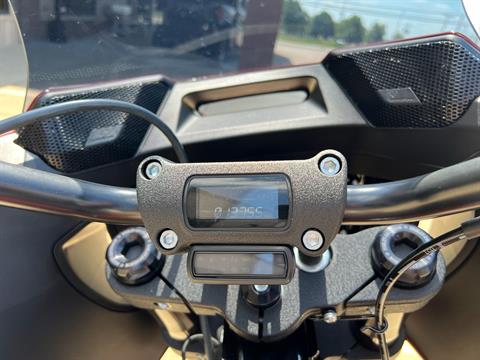

Gauges - 2.14 in. viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indicationManufacturer spec
Lighting
Lights (as per country regulation), Headlamp, Tail / Stop / Front signal lights8 - All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signalsManufacturer spec
Electrical System
Electric Power Outlet - USB A-type; output 5V at 2.4AManufacturer spec

Engine

Bore x Stroke
4.075 x 4.5 in. (103.5 x 114.3 mm)Manufacturer spec
Compression Ratio
10.2:1Manufacturer spec
Gear Ratio
Overall 1st - 9.311 2nd - 6.454 3rd - 4.793 4th - 3.882 5th - 3.307 6th - 2.79Manufacturer spec
Clutch
Mechanical, 10 plate wet, assist and conventionalManufacturer spec
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)3Manufacturer spec
Exhaust
2-into-2 offset shotgun; catalyst in mufflerManufacturer spec
Lubrication
Pressurized, dry-sump with oil coolerManufacturer spec
Oil Capacity
With filter - 5 qt. (4.7 l)Manufacturer spec
MPG Rating
Estimated City / Hwy - 47 mpg (5 l / 100 km)5Manufacturer spec

Operational

Front Suspension
Travel - 5 in. (130 mm)Manufacturer spec
Rear Suspension
Travel - 4.4 in. (112 mm) Shocks - Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustmentManufacturer spec
Rake
Steering head - 28°Manufacturer spec
Trail
5.7 in. (145 mm)Manufacturer spec
Fork
Angle - 28° Front - Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate springManufacturer spec

Other

Includes
Security System - Standard11 Cruise Control - StandardManufacturer spec
Cargo Capacity

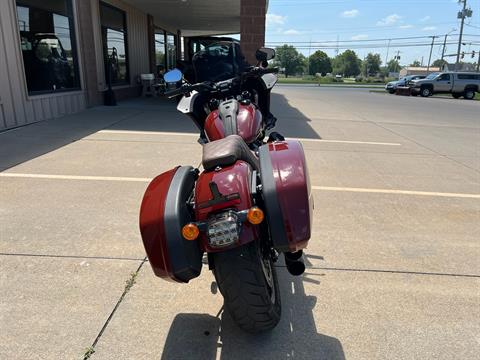

Luggage Volume - 1.9 cu. ft. (0.05 cu. m)Manufacturer spec

From the dealer's page

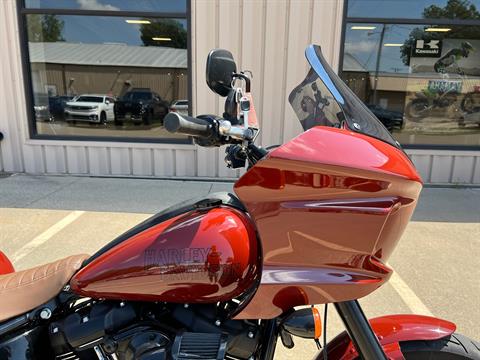

The 2024 Low Rider ST combines the style of the FXRT-inspired fairing with the muscle of a Milwaukee 117 V-twin.
