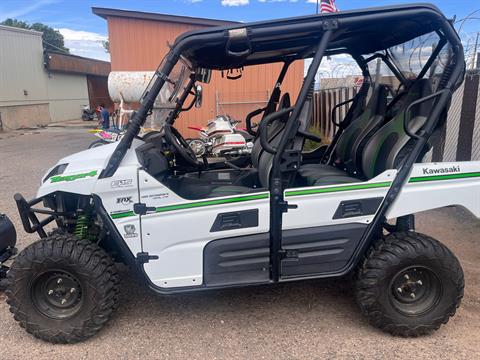

2016 Kawasaki Teryx4 — photo 1 of 25
1 / 25

Specs

New or used
Used
Availability
In stock
Colour
Bright White
Torque
47 lb-ftManufacturer specDealer: 47.0 lb-ft@ 5500 rpm
Displacement
783 ccManufacturer spec
Cylinders
2Manufacturer specDealer: 4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Engine cycle
Four-strokeManufacturer specDealer: 4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Cooling
Liquid-cooledManufacturer spec
Transmission
Continuously variable belt-drive transmission with high and low range, reverse, and a wet centrifugal clutchManufacturer spec
Wheelbase
85.6 inManufacturer spec
Ground clearance
11.2 inManufacturer spec
Dry weight
1,593.5 lbManufacturer spec
Towing capacity
1,300 lbManufacturer spec
Seating
4Manufacturer spec
Model code
KRT800FGF
VIN
JKBRTCF15GB500241
Stock #
KAW500241
All details from the dealer (24)
Model Type
Teryx

Brakes/Wheels/Tires

Brakes
Front - Dual hydraulic discs with two-piston calipers Rear - Sealed, oil-bathed, multi-discManufacturer spec
Tires
Front - Maxxis 26 x 9-12 Rear - Maxxis 26 x 11-12Manufacturer spec

Dimensions

Length
125.4 inManufacturer spec
Height
77.8 inManufacturer spec
Width
61.6 inManufacturer spec
Turning Radius
16.7 ftManufacturer spec

Drivetrain

Final Drive
Selectable 4-wheel drive with locking front differential, shaftManufacturer spec

Electrical

Instrumentation
Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicatorsManufacturer spec
Lighting
(2) 35W headlights, (2) 8W tail light, 24W stoplightManufacturer spec

Engine

Bore x Stroke
85.0 x 69.0mmManufacturer spec
Compression Ratio
10.7:1Manufacturer spec
Fuel System
DFI® with two 36mm Mikuni throttle bodiesManufacturer spec
Ignition
TCBI with electronic advanceManufacturer spec
Starting
ElectricManufacturer spec
Fuel Tank Capacity
7.9 galManufacturer spec

Operational

Frame
Steel Tube Double-X ReinforcementManufacturer spec
Steering
Wheel / Rack and Pinion w/ EPSManufacturer spec

Other

Cargo Box Length
17.9 inManufacturer spec
Cargo Box Height
8.7 inManufacturer spec
Cargo Box Width
47.6Manufacturer spec
Cargo Box Capacity
249 lbManufacturer spec
Load Capacity
1109 lbManufacturer spec
Options
Kawasaki Protection Plus™ - 12, 24, or 36 monthsManufacturer spec

From the dealer's page

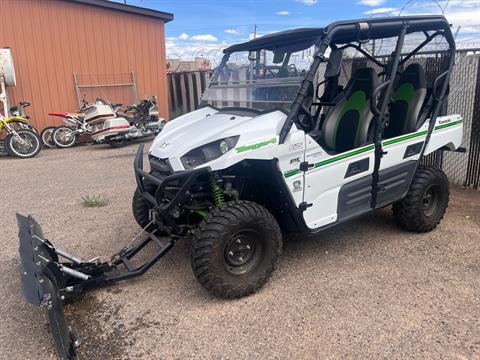

The redesigned Teryx4™ the perfect balance of thrilling power, a smooth ride and utility making it more than ready for the most demanding adventures. 783cc V-Twin engine with strong mid-range power delivery Durable “Double-X” frame construction Tilt steering, Electric Power Steering (EPS) and tight 16.7-ft turning radius Fox Podium Piggyback shocks to soak up bumps Sporty new front end styling with LED headlights Four automotive-style doors and comfortable three-tone bucket seats Backed by the industry leading Kawasaki Strong 3-Year Limited Warranty Has roof, street legal kit, plow and winch

Price history

Tracked since Oct 4, 2026 · last checked 3h ago

Price details as printed by the dealer

  1. Price$9,500

Throttle does not add these up.

Timeline

  1. First seen

    Oct 4, 2026

Market context

Comp set: 2014–2018 Kawasaki Teryx4 · 12 listings

Median asking
$8,484
across 11 comparable listings
This one
$9,500
+12.0% vs median
Days on market
5d
none have left dealer sites yet
Left dealer sites
—
none yet
