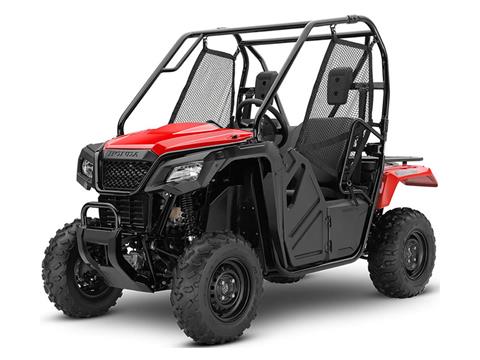

2020 Honda Pioneer 500
0 likes, 0 dislikes
$8,999
Side-by-SideUsed533 mi3d on ThrottleL4501501
LEISURE TIME HONDA-SUZUKI· Corry, PA
Specs
- New or used
- Used
- Availability
- In stock
- Colour
- Red
- Displacement
- 475 ccManufacturer spec
- Cylinders
- 1Manufacturer specDealer: Single
- Engine cycle
- Four-strokeManufacturer spec
- Cooling
- Liquid-cooledManufacturer specDealer: Liquid
- Drive
- Direct front and rear driveshaftsManufacturer spec
- Hours
- 119 hrs
- Wheelbase
- 73 inManufacturer spec
- Ground clearance
- 8.5 inManufacturer spec
- Wet weight
- 1,025 lbManufacturer spec
- Towing capacity
- 1,000 lbManufacturer spec
- Fuel capacity
- 4.1 galManufacturer specDealer: 4.1 gal. (including 1.1-gal. reserve)
- Model code
- SXS500M2M
- Warranty
- One Year Transferable, limitedManufacturer spec
- VIN
- 1HFVE0369M4601077
- Stock #
- HON601077
All details from the dealer (15)
- Model Type
- SxS: Pioneer 500, 520 & 700
Brakes/Wheels/Tires
- Brakes
- Front - Dual 200 mm hydraulic disc Rear - 170 mm hydraulic discManufacturer spec
- Tires
- Front - 24 x 8-12 Rear - 24 x 10-12Manufacturer spec
Dimensions
- Length
- 102.6 in.Manufacturer spec
- Height
- 71.3 in.Manufacturer spec
- Width
- 50 in.Manufacturer spec
- Turning Radius
- 12.8 ft.Manufacturer spec
Engine
- Bore x Stroke
- 92 x 71.5 mmManufacturer spec
- Compression Ratio
- 9.5:1Manufacturer spec
- Clutch
- AutomaticManufacturer spec
- Fuel System
- Electronic fuel injection (PGM-FI), 36 mm throttle bodyManufacturer spec
- Ignition
- Full-transistorized type with electronic advanceManufacturer spec
Operational
- Front Suspension
- Independent double-wishbone Travel - 5.9 in.Manufacturer spec
- Rear Suspension
- Independent double-wishbone with preload adjustablility Travel - 5.9 in.Manufacturer spec
Other
- Safety Features
- Recommended for Drivers 16 years of age and olderManufacturer spec
From the dealer's page

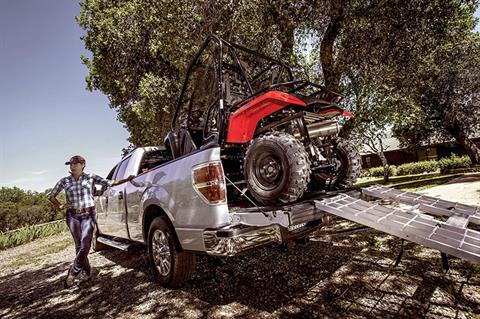

One of the best parts of any side-by-side is being able to go where other vehicles either can’t, or where they just wouldn’t be appropriate. And one of the best parts of Honda’s Pioneer 500 is that it can get you where other side-by-sides can’t go. At just 50 inches wide, seating for two, and room for cargo, you and a friend can explore width-restricted trails closed to bigger side-by-sides. Plus, it fits in a full-sized pickup bed for easy transport to the trailhead. It’s loaded with features like automatic transmission with AT/MT modes and a powerful engine that delivers plenty of low-RPM torque, all at an incredible value. Looking for a model with more performance and the additional versatility of a dump bed? Then check out our new Pioneer 520. Together, they’re two of the hardest-working, most versatile side-by-sides you’ll ever see—and they’re ready for work and exploring whenever you are.
Price history
Tracked since Oct 13, 2026 · last checked 3h ago
Price details as printed by the dealer
- Price$6,500
Throttle does not add these up.
LIMITED DATA: one listed price so far (Oct 13, 2026)
- EXTREME SPORTS (this listing)
Prices as listed by dealers; auction results labelled; a dashed gap = no listed price.
Timeline
First seen
Oct 13, 2026
Market context
Comp set: 2019–2023 Honda Pioneer 500 · 4 listings
- Median asking
- $7,000
- across 4 comparable listings
- This one
- $6,500
- -7.1% vs median
- Days on market
- New to Throttle
- none have left dealer sites yet
- Left dealer sites
- —
- none yet
