2025 Suzuki KingQuad 500AXi Power Steering SE+
0 likes, 0 dislikes
$10,529
ATVNewNew to ThrottleS7100631
PRO MOTORSPORTS· West Burlington, IA
Specs
- New or used
- Used
- Availability
- In stock
- Colour
- Cast Carbon
- Available colours
- Cast Carbon Metallic Matte Rocky GrayManufacturer spec
- Displacement
- 493 ccManufacturer specDealer: 493 cc (30.1 cu. in.)
- Cylinders
- 1Manufacturer specDealer: Single
- Engine cycle
- Four-strokeManufacturer specDealer: 4-stroke, 4-valve, OHC
- Cooling
- Liquid-cooledManufacturer specDealer: Liquid
- Transmission
- AutomaticManufacturer spec
- Drive
- Selectable 2WD/4WDManufacturer specDealer: Driven wheels - 2WD, 4WD and 4WD differential lock Final - Shaft
- Mileage
- 100 mi
- Seat height
- 36.2 inManufacturer specDealer: 36.2 in. (920 mm)
- Wheelbase
- 50.6 inManufacturer specDealer: 50.6 in. (1,285 mm)
- Ground clearance
- 10.2 inManufacturer specDealer: 10.2 in. (260 mm)
- Wet weight
- 714 lbManufacturer specDealer: Curb - 714 lb. (324 kg)
- Fuel capacity
- 4.6 galManufacturer specDealer: 4.6 US gal. (17.5 l)
- Model code
- LTA500XPZSM3
- Warranty
- 12-month limitedManufacturer spec
- Stock #
- SUZ100362
All details from the dealer (28)
Cast Carbon • Used ATVs
- Available at
- Pro Motorsports
- Model Type
- Utility Sport: KingQuad 500
- VIN
- 5SADW21HOP7100362
Chassis Features
- Chassis Features
- Suzuki's plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding.Manufacturer spec
Key Features
- Key Features

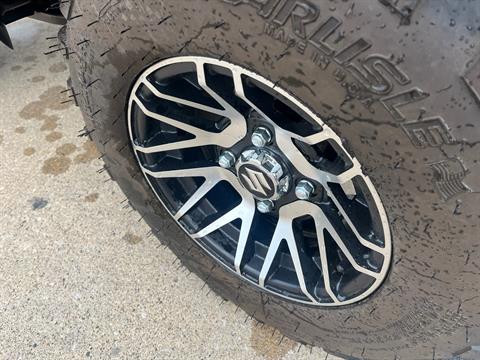

- Aggressive bodywork in Metallic Matte Rocky Gray color with blacked-out cast aluminum wheels.Manufacturer spec
- Key Features
- Generous towing capacity, fully independent suspension, and easy to ride on any terrain.Manufacturer spec
- Key Features

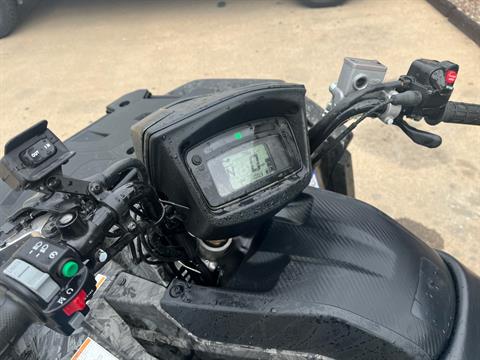

- Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel.Manufacturer spec
- Key Features
- Bold, angular styling, and a relaxed riding position with low-effort electronic power steering.Manufacturer spec
- Key Features
- Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking.Manufacturer spec
- Key Features
- Removable cargo rack protectors help you set up your KingQuad for any mission.Manufacturer spec
Special Features
- MINIMUM OPERATOR AGE
- 16 Years OldManufacturer spec
Utility / Convenience Features
- Utility / Convenience Features
- Full floorboards with integrated raised footpegs provide protection.Manufacturer spec
- Utility / Convenience Features

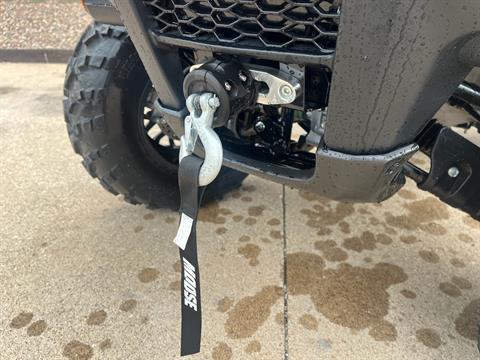

- Winch-ready mounts and wire conduit make winch installation simple.Manufacturer spec
Brakes/Wheels/Tires
- Brakes
- Front - Disc, twin rotors Rear - Sealed oil-bathed multi-discManufacturer spec
- Tires
- Front - AT25 x 8-12, tubeless type x 2 Rear - AT25 x 10-12, tubeless type x 2Manufacturer spec
Dimensions
- Length
- Overall - 84.6 in. (2,150 mm)Manufacturer spec
- Height
- Overall - 50.6 in. (1,285 mm)Manufacturer spec
- Width
- Overall - 47.8 in. (1,215 mm)Manufacturer spec
Electrical
- Lighting
- Headlight - 12V 35 / 35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted Tail light - LEDManufacturer spec
Engine
- Bore x Stroke
- 3.40 x 3.20 in. (87.5 x 82 mm)Manufacturer spec
- Compression Ratio
- 9.9:1Manufacturer spec
- Clutch
- Dry shoe, automatic, centrifugal typeManufacturer spec
- Fuel System
- Suzuki electronic fuel injectionManufacturer spec
- Ignition
- Electronic (transistorized)Manufacturer spec
- Starting
- ElectricManufacturer spec
- Lubrication
- Wet sumpManufacturer spec
Operational
- Suspension
- Front / Rear - Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbersManufacturer spec
- Steering
- Power steeringManufacturer spec
From the dealer's page
Suzuki, the inventor of the 4-wheel ATV, has created the world's best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The 2023 KingQuad 500AXi Power Steering SE+ is easy to ride on any terrain with the capabilities that only a KingQuad possesses.
