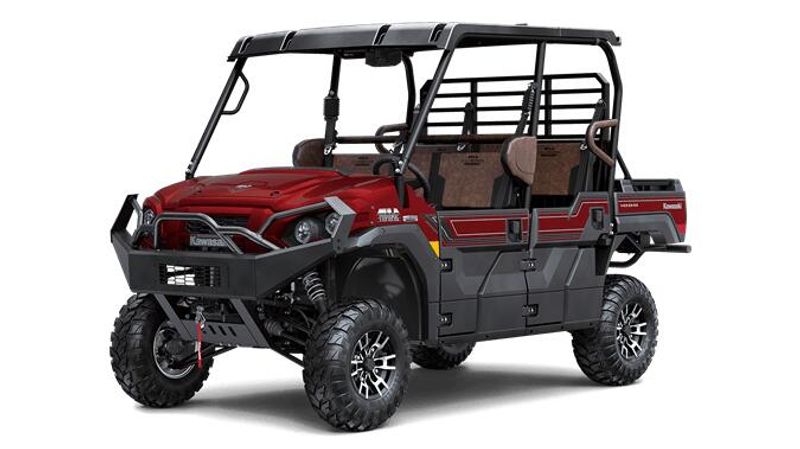

2026 Kawasaki MULE PRO-FXT 1000 Platinum Ranch Edition — photo 1 of 6
1 / 6

Specs

New or used
New
Colour
METALLIC DEEP RED
Torque
61.5 lb-ftManufacturer specDealer: 61.5 lb-ft @ 4,500 rpm
Displacement
999 ccManufacturer spec
Cylinders
2Manufacturer specDealer: Parallel Twin
Engine cycle
Four-strokeManufacturer specDealer: 4-stroke, DOHC
Cooling
Liquid-cooledManufacturer spec
Fuel
GasManufacturer spec
Transmission
CVTManufacturer spec
Drive
Selectable 2WD/4WDManufacturer spec
Hours
0 hrs
Wheelbase
92.3 inManufacturer specDealer: 92.3 in (2344.4 mm)
Ground clearance
11.6 inManufacturer specDealer: 11.6 in (294.6 mm)
Dry weight
1,988.9 lbManufacturer specDealer: 1988.9 lb (902 kg)
Wet weight
2,074.9 lbManufacturer spec
Towing capacity
2,000 lbManufacturer spec
Fuel capacity
7.9 galManufacturer specDealer: 7.9 gal (29.9 L)
Seating
3Manufacturer specDealer: <p>3-person (1 row), 6 person (2 row)</p><p>Premium</p><p>Contoured bench</p>
Warranty
Kawasaki Strong 3-Year LimitedManufacturer spec
VIN
JKAATCD17TB506248
Stock #
KAW506248
All details from the dealer (28)
Badge
New
Badge
Side By Side

Brakes

Front Brakes
Dual Hydraulic DiscManufacturer spec
Rear Brakes
Dual Hydraulic DiscManufacturer spec

General Specifications

Body Style
Utility SxSManufacturer spec

Specifications

Fuel System
DFI® with 38 mm throttle bodyManufacturer spec
Cargo Box Height
<p>3 Person - 11 in.</p><p>6 Person - 11 in.</p>Manufacturer spec
Height
Overall - 80.9 in.Manufacturer spec
Alternator
Max. output - 90AManufacturer spec
Bore x Stroke
92 x 75.1 mmManufacturer spec
Compression Ratio
10.1:1Manufacturer spec
Width
Overall - 64 in.Manufacturer spec
Lighting
<p>(4) LED headlights</p><p>Quad LED Headlights</p>Manufacturer spec
Steering
<p>Rack-and-pinion with Electric Power Steering (EPS)</p><p>Tilt</p>Manufacturer spec
Cargo Box Capacity
<p>3 Person - 999 lb.</p><p>6 Person - 350 lb.</p>Manufacturer spec
Cargo Box Length
<p>3 Person - 42.7 in.</p><p>6 Person - 22 in.</p>Manufacturer spec
Safety Features
Roof, Steel rear bumper, Brush guard, Headlight guards, Anti-cinch seat belts, All MULE™ PRO Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of ISO 3471Manufacturer spec
Capacity
Payload - 1,466.3 lb.Manufacturer spec
Cargo Box Width
<p>3 Person - 53.7 in.</p><p>6 Person - 53.7 in.</p>Manufacturer spec
Wheels
Alloy, Cast aluminum (Black and machined)Manufacturer spec
Length
Overall - 140.2 in.Manufacturer spec
Tires
<p>Front - 26 x 9-12, radial</p><p>Rear - 26 x 11-12, radial</p>Manufacturer spec
Turning Radius
16 ft.Manufacturer spec
Brakes
<p>Front - Dual Disc, 2-piston caliper</p><p>Rear - Dual Disc, 1-piston caliper</p><p>Engine Braking</p><p>Park Type - Independent, Mechanical Disc</p>Manufacturer spec

Suspension

Front Suspension
Independent Double WishboneManufacturer spec
Rear Suspension
Independent Double WishboneManufacturer spec

Tires

Front Tire
Duro: 26 x 9-12Manufacturer spec
Rear Tire
Duro: 26 x 11-12Manufacturer spec
