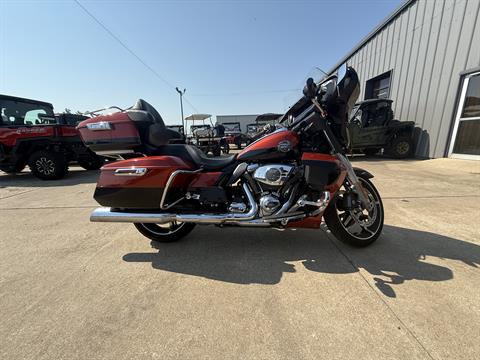

2025 Harley-Davidson STREET GLIDE ULTRA
0 likes, 0 dislikes
$31,999
MotorcycleUsed2d on ThrottleSB616042
Casper Mountain Motorsports· Casper, WY
Specs
- New or used
- Used
- Availability
- In stock
- Colour
- Whiskey Fire / Vivid Black (Chrome Finish)
- Horsepower
- 105 hpManufacturer specDealer: 105 hp (78 kW) @ 4,600 rpm
- Torque
- 130 lb-ftManufacturer specDealer: 130 ft. lb. (176 Nm)5 @ 3,250 rpm Testing Method - SAE J1168 Rider Safety Enhancements - Drag-torque Slip Control System (DSCS), Cornering Drag-Torque Slip Control System (C-DSCS)
- Displacement
- 1,923 ccManufacturer specDealer: 1,923 cc (117 ci)
- Cooling
- Liquid-cooledManufacturer specDealer: Coolant capacity - 0.82 qt. (0.78 l)
- Transmission
- ManualManufacturer specDealer: 6-Speed Cruise Drive® Capacity - 1 qt. (0.95 l)
- Final drive
- BeltManufacturer spec
- Mileage
- 14,021 mi
- Seat height
- 26.9 inManufacturer specDealer: Laden - 26.9 in. (683 mm)8 Unladen - 28.5 in. (725 mm)
- Wheelbase
- 64 inManufacturer specDealer: 64 in. (1,625 mm)
- Ground clearance
- 5.3 inManufacturer specDealer: Static - 5.3 in. (135 mm) Left / Right Lean Angle - 31°
- Fuel capacity
- 6 galManufacturer specDealer: 6 gal. (22.7 l) Reserve, Fuel Injection (warning light) - 1 gal. (3.8 l)
- Model code
- FLHXU
- VIN
- 1HD1AK718SB617079
- Stock #
- H17079
All details from the dealer (25)
- Model Type
- Touring
Brakes/Wheels/Tires
- Wheels
- Front / Rear - Cast Aluminum3 Front Diameter - 19 in. (483 mm) Front Width - 3.5 in. (89 mm) Rear Diameter - 18 in. (457 mm) Rear Width - 5 in. (127 mm)Manufacturer spec
- Tires
- Front / Rear - Dunlop® Harley-Davidson Series, bias blackwall Front Model - D408F Rear Model - D407T Front - 130 / 60B19 M / C 61H Rear - 180 / 55B18 M / C 80HManufacturer spec
Dimensions
- Length
- 102 in. (2,590 mm)Manufacturer spec
- Height
- 57.1 in. (1,450 mm)Manufacturer spec
- Width
- 38.6 in. (980 mm)Manufacturer spec
Drivetrain
- Primary Drive
- Chain, 34/46 ratioManufacturer spec
- Chain
- Primary case capacity - 1.1 qt. (1 l)Manufacturer spec
Electrical
- Lighting
- (As per country regulation), Headlamp, Tail / Stop / Front Signal2 - LEDManufacturer spec
Engine
- Bore x Stroke
- 4.075 x 4.5 in. (103.5 x 114.3 mm)Manufacturer spec
- Compression Ratio
- 10.3:1Manufacturer spec
- Gear Ratio
- Overall 1st - 9.593 2nd - 6.65 3rd - 4.938 4th - 4 5th - 3.407 6th - 2.875Manufacturer spec
- Clutch
- Mechanically actuated 10 plate wet, Assist and SlipManufacturer spec
- Fuel System
- Electronic Sequential Port Fuel Injection (ESPFI)6Manufacturer spec
- Exhaust
- 2-1-2 dual with tapered mufflersManufacturer spec
- Lubrication
- System - Pressurized, dry-sumpManufacturer spec
- Oil Capacity
- With filter - 5 qt. (4.7 l)Manufacturer spec
- MPG Rating
- Estimated City / Hwy - 44 mpg (5.3 l/100 km)4Manufacturer spec
Operational
- Front Suspension
- Travel - 4.6 in. (117 mm)Manufacturer spec
- Rear Suspension
- Shocks - 3 in. (76.2 mm) Dual Outboard Emulsion with Preload Adjustability Travel - 3 in. (76 mm)Manufacturer spec
- Rake
- Steering head - 26°Manufacturer spec
- Trail
- 6.7 in. (170 mm)Manufacturer spec
- Fork
- Front - 1.9 in. (49 mm) Dual bending valve Angle - 29.25°Manufacturer spec
Other
- Includes
- Security System - Standard Cruise Control - Standard Rider Safety Enhancements - Tire pressure monitoring system (TPMS)Manufacturer spec
- Cargo Capacity
- Luggage - 4.9 cu. ft. (0.137 m3)Manufacturer spec
From the dealer's page
The Street Glide Ultra is made for two-up touring, with a powerful V-twin engine, spacious storage, and modern amenities refined over decades of cross-country riding.
Price history
Tracked since Oct 4, 2026 · last checked 3h ago
Price details as printed by the dealer
- Price$28,969
Throttle does not add these up.
Timeline
First seen
Oct 4, 2026
Market context
Comp set: 2023–2027 Harley-Davidson Street Glide Ultra · 2 listings
Fewer than three comparable units are indexed, so there is no honest median to compare against yet. We would rather show nothing than a number we cannot stand behind.
