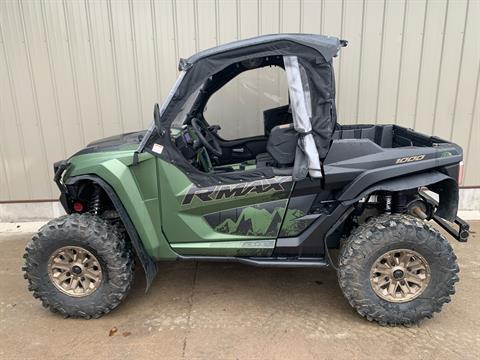

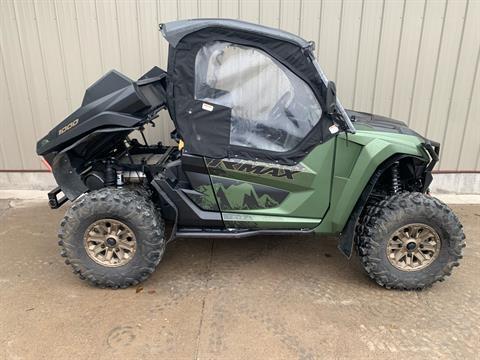

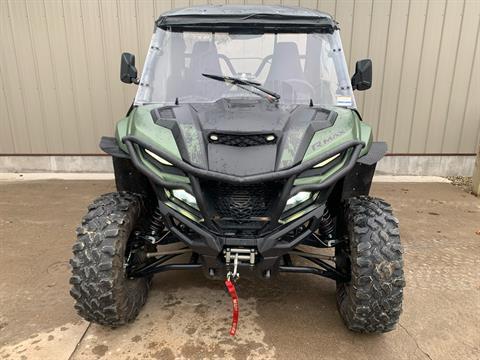

2023 Yamaha Wolverine RMAX2 1000 XT-R
0 likes, 0 dislikes
$17,499
Side-by-SideUsed3,072 miNew to ThrottlePA109845
Team Motorsports· De Pere, WI
Specs
- New or used
- Used
- Availability
- In stock
- Colour
- Covert Green
- Displacement
- 999 ccManufacturer spec
- Engine cycle
- Four-strokeManufacturer specDealer: 4-stroke, DOHC, 4-valve
- Cooling
- Liquid-cooledManufacturer specDealer: Liquid
- Transmission
- Ultramatic V-belt with all-wheel engine braking; L, H, N, RManufacturer spec
- Hours
- 185 hrs
- Wheelbase
- 86.7 inManufacturer spec
- Ground clearance
- 13.8 inManufacturer spec
- Wet weight
- 1,876.1 lbManufacturer spec
- Towing capacity
- 2,000 lbManufacturer spec
- Fuel capacity
- 9.2 galManufacturer spec
- Model code
- YXE10WPZMG
- Warranty
- 6 Month (Limited Factory) - Yamaha 10-Year BeltManufacturer spec
- VIN
- 5Y4AN42Y1MA100762
- Stock #
- YAM100762
All details from the dealer (15)
Covert Green • Used Utility Vehicles
- Available at
- Pro Motorsports
- Model Type
- Recreation Side-By-Side
Brakes/Wheels/Tires
- Brakes
- Front / Rear - Dual hydraulic discManufacturer spec
- Tires
- Front / Rear - 30 x 10.00R-14 Maxxis® Carnivore™Manufacturer spec
Dimensions
- Length
- 119.3 in.Manufacturer spec
- Height
- 77.8 in.Manufacturer spec
- Width
- 66.1 in. Stance - 64 in. (width measured laterally between the outermost wheel rim on each side of the vehicle)Manufacturer spec
- Turning Radius
- 236 in.Manufacturer spec
Drivetrain
- Final Drive
- On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WDManufacturer spec
Engine
- Bore x Stroke
- 93 x 73.5 mmManufacturer spec
- Compression Ratio
- 11.2:1Manufacturer spec
- Fuel System
- Yamaha Fuel Injection (YFI); dual 48 mm throttle bodiesManufacturer spec
Operational
- Front Suspension
- Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 14.2 in. travelManufacturer spec
- Rear Suspension
- Independent double wishbone, FOX® QS3 piggyback shocks; 16.9 in. travelManufacturer spec
Other
- Capacity
- Bed - 600 lb.Manufacturer spec
From the dealer's page
Take adventures to the extreme with the new 999cc engine, the all-new D-Mode featuring Sport, Trail, and Crawl modes, plus factory-installed WARN® winch, aggressive tread Maxxis® Carnivore® tires, and integrated Yamaha Adventure Pro.
Price history
Tracked since Oct 12, 2026 · last checked 13h ago
Price details as printed by the dealer
- Price$16,000
Throttle does not add these up.
LIMITED DATA: one listed price so far (Oct 12, 2026)
- PRO MOTORSPORTS (this listing)
Prices as listed by dealers; auction results labelled; a dashed gap = no listed price.
Timeline
First seen
Oct 12, 2026
Market context
Comp set: 2019–2023 Yamaha Wolverine RMAX2 1000 XT-R · 4 listings
The comparable units we have indexed come from too few sellers, or all carry the same price, so a median of them would describe our index rather than the market. We would rather show nothing than a number we cannot stand behind.
