Model Type

Multistrada

Model Code

NA

Electronic Riding Aid Systems

DUCATI CORNERING LIGHT (DCL)

LED lights that turn on in the direction of the road, according to a defined lean angle when the bike is facing a curve, allowing the rider to better see the roadManufacturer spec

DUCATI SKYHOOK SUSPENSION (DSS)

Semi-active suspension management system that "reads" the road and modifies the suspension reaction to offer greater comfort while driving and reduce load transfers in the case of decisive braking and acceleration, to the benefit of controlManufacturer spec

RIDE-BY-WIRE SYSTEM

Also known as electronic accelerator, it is a system that electronically manages the opening and closing of the throttle (s).Manufacturer spec

General Information

Model Code

NAManufacturer spec

Brakes/Wheels/Tires

Brakes

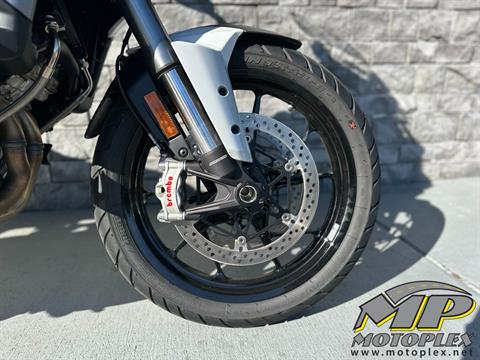

Front - 2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS Rear - Ø 280 mm disc, Brembo 2-piston floating caliper, Cornering AB80Manufacturer spec

Wheels

Front - Light alloy cast, 3 x 19 in. Rear - Light alloy cast, 4.5 x 17 in.Manufacturer spec

Tires

Front - Pirelli Scorpion Trail II 120 / 70 ZR 19 Rear - Pirelli Scorpion Trail II 170 / 60 ZR 17Manufacturer spec

Drivetrain

Primary Drive

Straight cut gears; Ratio 1.8:1Manufacturer spec

Sprocket

Front - Z16 Rear - Z42Manufacturer spec

Electrical

Instrumentation

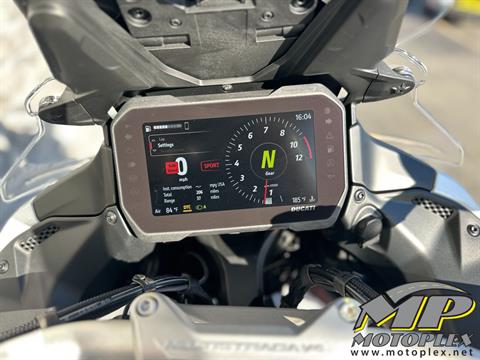

6.5 in. TFT color display with Ducati Connect and full-map navigation systemManufacturer spec

Advanced Electronics

Riding Mode, Power Mode, Ducati Traction Control, Ducati Wheelie Control, Vehicle Hold Control, Radar system Ducati Quick ShiftManufacturer spec

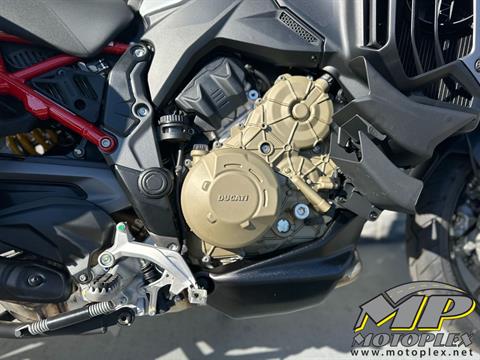

Engine

Bore x Stroke

83 x 53.3 mmManufacturer spec

Compression Ratio

14:1Manufacturer spec

Gear Ratio

1st - 40/13 2nd - 36/16 3rd - 34/19 4th - 31/21 5th - 29/23 6th - 27/25Manufacturer spec

Fuel System

Continental electronic fuel injection system, Øeq 46 mm equivalent elliptical throttle bodies with Ride-by-Wire systemManufacturer spec

Exhaust

Stainless steel muffler, double catalytic converterManufacturer spec

Operational

Frame

Aluminum monocoqueManufacturer spec

Front Suspension

Ø 50 mm fully adjustable USD fork, electronic compression and rebound damping adjustment with Ducati Skyhook Suspension, integrated stroke sensor Wheel Travel - 6.7 in. (170 mm)Manufacturer spec

Rear Suspension

Fully adjustable monoshock, electronic adjustment with Ducati Skyhook Suspension, automatic fast lowering device between 6 mph and 30 mph, aluminum double-sided swingarm Wheel Travel - 7.1 in. (180 mm)Manufacturer spec

Rake

24.2°Manufacturer spec

Trail

4 in. (100.6 mm)Manufacturer spec

Seat

2Manufacturer spec

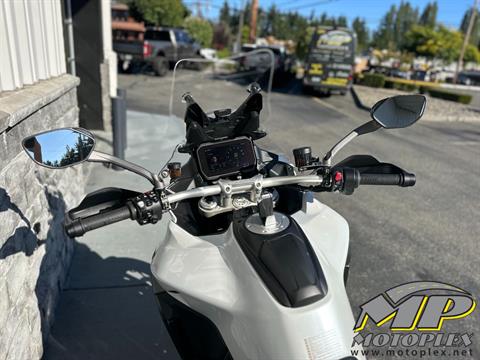

Handlebars

Backlit switchesManufacturer spec

Other

Includes

Minimum preload, Cruise control, Hands-freeManufacturer spec
