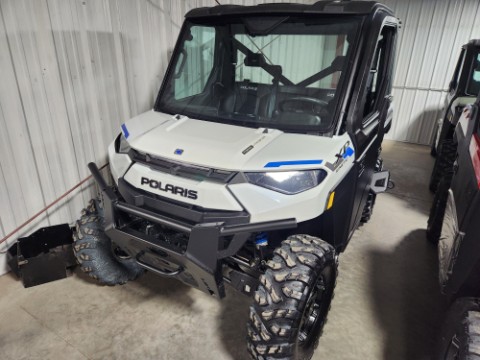

2024 Polaris Ranger XP Kinetic Premium — photo 1 of 3
1 / 3

Specs

New or used
New
Availability
In stock
Colour
Icy White Pearl
Available colours
Icy White Pearl Polaris Pursuit CamoManufacturer spec
Horsepower
110 hpManufacturer spec
Torque
140 lb-ftManufacturer spec
Cooling
Liquid-cooledManufacturer specDealer: Active Air and Liquid
Transmission
Gates Synchronous Belt H / L / N / P (Electronic Forward / Reverse)Manufacturer spec
Drive
Selectable 2WD/4WDManufacturer specDealer: High Performance On-Demand True AWD / 2WD / VersaTrac Turf Mode
Wheelbase
81 inManufacturer specDealer: 81 in. (206 cm)
Ground clearance
14 inManufacturer specDealer: 14 in. (35.6 cm)
Dry weight
1,754 lbManufacturer specDealer: Estimated Dry - 1,754 lb. (796 kg)
Towing capacity
2,500 lbManufacturer specDealer: 2,500 lb. (1,134 kg)
Seating
3Manufacturer spec
Battery
14.9 kWhManufacturer spec
Range
45 miManufacturer spec
Model code
R24E3CC2BD
VIN
4XAE3CC23R8703576
Stock #
PO24177
All details from the dealer (28)
Model Type
Ranger XP Kinetic

Uncompromised Capability

110 HP ELECTRIC MOTOR
Produces nearly 35% more power than any other full-size utility side-by-side on the marketManufacturer spec
1,250 LB. BOX CAPACITY
Get more done in fewer tripsManufacturer spec
14" GROUND CLEARANCE
Take on rough terrain with easeManufacturer spec
HEAVIER LOADS, FEWER TRIPS
With instantaneous torque and unmatched power, effortlessly tow 2,500 lbs.Manufacturer spec

Brakes/Wheels/Tires

Brakes
Front / Rear - 4-Wheel hydraulic disc with dual-bore front calipers Engine Braking System (EBS) - Regenerative Braking Parking - Park In-TransmissionManufacturer spec
Wheels
14 in. (35.6 cm) AluminumManufacturer spec
Tires
Front - 29 x 9-14; PRO ARMOR X-TERRAIN Rear - 29 x 11-14; PRO ARMOR X-TERRAIN Ply Rating - 8 Ply RatedManufacturer spec

Dimensions

Length
Overall - 120 in. (305 cm)Manufacturer spec
Height
Overall - 78 in. (198 cm)Manufacturer spec
Width
Overall - 62.5 in. (158 cm)Manufacturer spec
Turning Radius
13.3 ft. (406.4 cm)Manufacturer spec

Drivetrain

Final Drive
ShaftManufacturer spec

Electrical

Lighting
Dual LED Headlamps, 1,250lm low beam, 2,300lm high beam, LED Front Accent with Charge Indicator, Dual LED TaillampsManufacturer spec
Advanced Electronics
Connectivity with Ride Command+Manufacturer spec
Electrical System
Polaris Pulse Electrical System (6 position)Manufacturer spec
Charger Type
Onboard Battery Charger - 3 kWManufacturer spec

Engine

Motor Type
Internal Permanent Magnet AC MotorManufacturer spec

Operational

Front Suspension
Dual A-Arm Travel - 10 in. (25.4 cm)Manufacturer spec
Rear Suspension
Dual A-Arm, IRS Travel - 10 in. (25.4 cm)Manufacturer spec
Steering
Electronic Power Steering Tilt Steering Premium Steering Wheel and Interior AccentsManufacturer spec

Other

Cargo Box Length
36.75 in. (93.3 cm)Manufacturer spec
Cargo Box Height
12.5 in. (31.75 cm)Manufacturer spec
Cargo Box Width
54.25 in. (137.8 cm)Manufacturer spec
Cargo Box Capacity
1,250 lb. (567 kg)Manufacturer spec
Cargo Box
System - Lock and Ride®Manufacturer spec
Capacity
Payload - 1,500 lb. (680.4 kg)Manufacturer spec
Hitch
Standard 2 in. (5 cm) ReceiverManufacturer spec

From the dealer's page

DO MORE THAN EVER BEFORE RANGER XP Kinetic delivers uncompromised capability, unrivaled durability, and the refined performance of an all-electric powertrain.

Price history

Tracked since Oct 12, 2026 · last checked 4h ago

Price details as printed by the dealer

  1. Price$29,999

Throttle does not add these up.

  • Medford Powersports, Inc. (this listing)

Prices as listed by dealers; auction results labelled; a dashed gap = no listed price.

Timeline

  1. First seen

    Oct 12, 2026

Market context

Comp set: 2022–2026 Polaris Ranger XP Kinetic Premium · 2 listings

Fewer than three comparable units are indexed, so there is no honest median to compare against yet. We would rather show nothing than a number we cannot stand behind.
