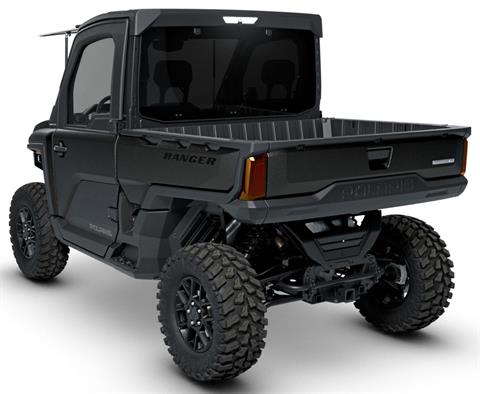

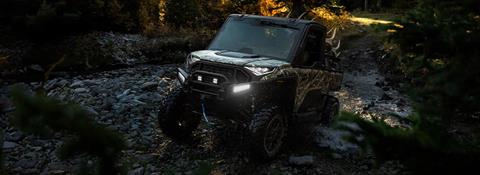

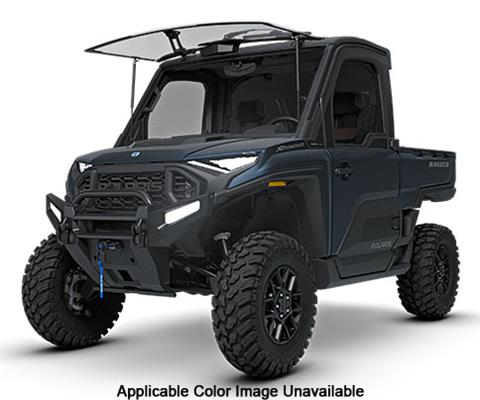

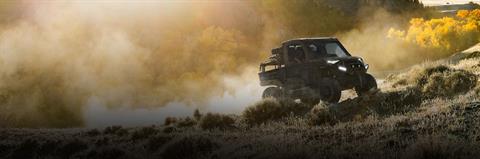

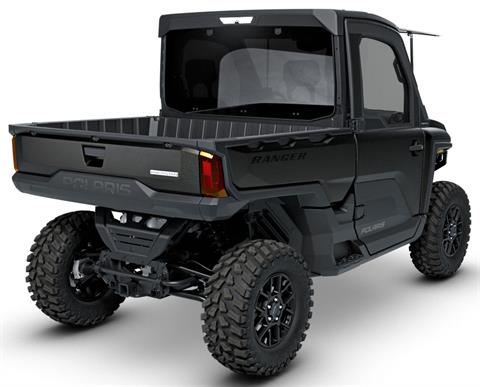

2027 Polaris Ranger XD 1500 NorthStar Ultimate - Light Tint — photo 1 of 21
1 / 21

Specs

New or used
New
Availability
In stock
Colour
Super Graphite
Available colours
Super Graphite Polaris Pursuit Camo Steely BlueManufacturer spec
Horsepower
110 hpManufacturer spec
Displacement
1,498 ccManufacturer spec
Cylinders
3Manufacturer specDealer: Triple
Engine cycle
Four-strokeManufacturer specDealer: 4-Stroke, DOHC
Cooling
Liquid-cooledManufacturer specDealer: Liquid
Fuel
GasManufacturer spec
Drive

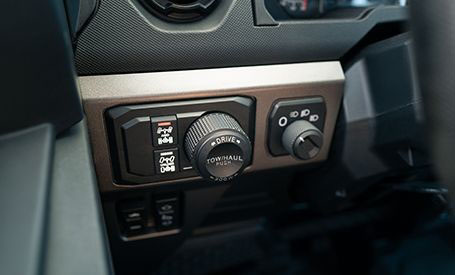

Selectable 2WD/4WDManufacturer specDealer: Selectable on-demand all-wheel drive, AWD / 2WD / Turf / Ultra Turf Drive Modes: Comfort, Standard, Sport, Tow / Haul Driveline features - Drive mode-specific engine braking system, hill assist, and creep in drive and reverse
Wheelbase
95 inManufacturer specDealer: 95 in. (241.3 cm)
Ground clearance
15 inManufacturer specDealer: 15 in. (38 cm)
Dry weight
2,826 lbManufacturer specDealer: Estimated dry - 2,826 lb. (1,281 kg)

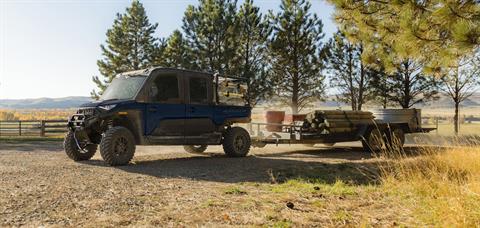

Towing capacity
3,500 lbManufacturer specDealer: 3,500 lb. (1,588 kg) Pro Series 6,000 lb. Winch with synthetic rope, Auto Stop, and wireless remote
Fuel capacity
13.6 galManufacturer specDealer: 13.6 gal. (51.5 l)
Seating
3Manufacturer specDealer: 3 person capacity Type - 3-person, superior contoured, bolstered, and heated bench seat with 3-point harness, adjustable driver seat, and flip-down arm rest
Model code
R27XAZ1RBJ
Warranty
2-year limitedManufacturer spec
Stock #
N/A
All details from the dealer (24)
Stock Number
N/A
Model Type
Ranger XD 1500 NorthStar

General Information

Stock Number
N/AManufacturer spec

Brakes/Wheels/Tires

Brakes
Front / Rear - Foot-activated and power-assisted, 4-wheel hydraulic disc with dual-bore front and rear calipers Park in-transmissionManufacturer spec
Wheels
15 in. aluminumManufacturer spec
Tires
Front - 30 x 10-15; KENDA® CROSS TRAIL Rear - 30 x 11-15; KENDA® CROSS TRAIL Ply Rating - 8-plyManufacturer spec

Dimensions

Length
Overall - 137 in. (348 cm)Manufacturer spec
Height
Overall - 78 in. (198 cm)Manufacturer spec
Width
Overall - 65 in. (165 cm)Manufacturer spec
Turning Radius
15.1 ft. (4.6 m)Manufacturer spec

Drivetrain

Transmission
STEELDRIVE Automatic Transmission: D / R / PManufacturer spec

Electrical

Advanced Electronics

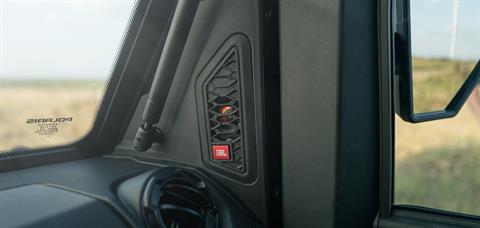

Audio system - JBL Trail Pro 2000 AudioManufacturer spec

Engine

Fuel System
Electronic Fuel InjectionManufacturer spec

Operational

Front Suspension
Dual A-arm 12 in. (30.5 cm) travelManufacturer spec
Rear Suspension
Dual arched A-arm, IRS 12 in. (30.5 cm) travelManufacturer spec
Steering

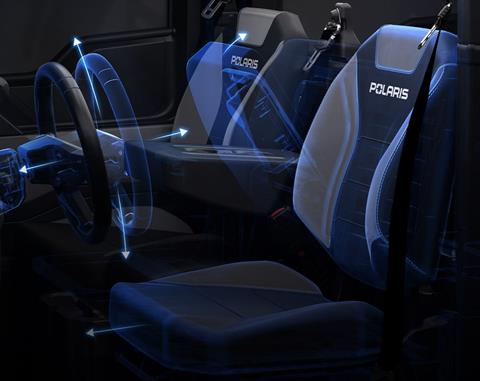

Tilt & telescoping adjustment Electronic Power Steering - High-output EPSManufacturer spec

Other

Includes

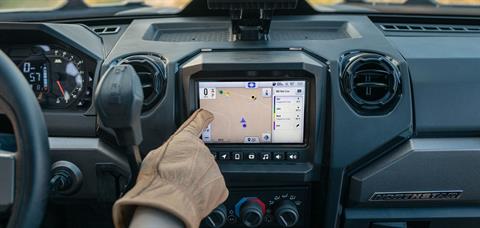

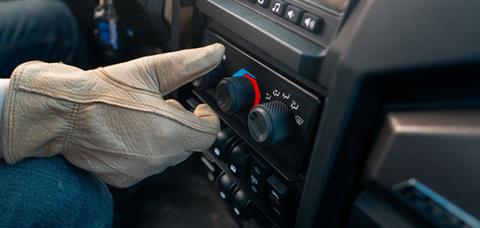

Heat and / or Air Conditioning - Factory-installed heat, AC, defrost, recirculation with 5 different airflow settings Speed limiting controlled in RIDE COMMANDManufacturer spec
Cargo Box Length
Bed box dimensions - 43.4 in. (110.2 cm)Manufacturer spec
Cargo Box Height
Bed box dimensions - 13.4 in. (34 cm)Manufacturer spec
Cargo Box Width
Bed box dimensions - 56 in. (142.2 cm)Manufacturer spec
Cargo Box Capacity
1,500 lb. (680 kg)Manufacturer spec
Cargo Box
Cargo system - System - Electronic lift dump box with Lock & Ride MAX accessory integrationManufacturer spec
Capacity
Payload - 1,675 lb. (759 kg)Manufacturer spec
Hitch
Type - Standard 2 in. (5 cm) receiverManufacturer spec

From the dealer's page

Part of our Extreme Duty class. The strongest, most capable and comfortable RANGER with all-season comfort and elevated in-cab features.
