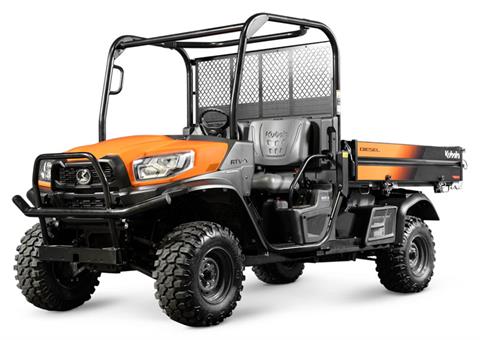

2026 Kubota RTV-X Long Bed Heavy Duty Multi-Purpose — photo 1 of 8
1 / 8

Specs

New or used
New
Availability
In stock
Colour
Orange
Horsepower
23.3 hpManufacturer specDealer: 23.3 hp (17.4kW) @3,000 rpm
Displacement
1,123 ccManufacturer specDealer: 1,123 cc (68.5 ci)
Cylinders
3Manufacturer spec
Cooling
Liquid-cooledManufacturer specDealer: Liquid
Fuel
DieselManufacturer spec
Transmission
Variable Hydro Transmission (VHT-X) Gear selection - Hi-Lo range forward, neutral, reverse Front / Rear differential lock - Limited-slip differentialManufacturer spec
Drive
4WDManufacturer spec
Wheelbase
98.2 inManufacturer specDealer: 98.2 in. (2,495 mm)
Ground clearance
11.2 inManufacturer specDealer: Front - 11.2 in. (285 mm) Rear - 9.4 in. (240 mm)
Model code
RTVX2L-SKLH-1
Stock #
20474
All details from the dealer (23)
Model Type
Full-Size Diesel Utility Vehicles
VIN
A5KC2HDBLTG020474

Features

COMFORT AND CONVENIENCE
LED Meter Panel, Strong high-rigidity frame, Extra Duty Independent suspension, tilt steering, Low/High LED headlights, HDMP tires* *on select trimsManufacturer spec

Brakes/Wheels/Tires

Brakes
Front / Rear - Wet-disk brakes Parking - Wet-diskManufacturer spec
Tires
Front / Rear tread centers - 50.4 in. (1,280 mm) HDMP (Heavy Duty Multi-Purpose) - 25 × 10-12, 6-plyManufacturer spec

Dimensions

Length
154.5 in. (3,925 mm)Manufacturer spec
Height
Overall - 79.7 in. (2,025 mm)Manufacturer spec
Width
63.2 in. (1,605 mm)Manufacturer spec
Turning Radius
17.1 in. (5.2 m)Manufacturer spec

Electrical

Battery
670 CCAManufacturer spec
Lighting
Headlights - LED (High / Low)Manufacturer spec

Engine

Fuel Tank Capacity
7.9 US gal. (30 l)Manufacturer spec

Operational

Front Suspension
Independent, Dual A-arms with adjustable spring preload Travel - 8 in. (205 mm)Manufacturer spec
Rear Suspension
Independent with coil over shock Travel - 8 in. (205 mm)Manufacturer spec
Steering
StandardManufacturer spec
Speed - Forward
0 - 25 mph (0 - 40 km/h)Manufacturer spec

Other

Includes
Material - Steel Spray-on bed liner - Standard ProKonvert - Standard Sound rating at operator's ear at max rpm - 7.9 db. (30A) Standard front guard - StandardManufacturer spec
Cargo Box Length
72.3 in. (1,837 mm)Manufacturer spec
Cargo Box Height
11.6 in. (294 mm) Bed height (unloaded) - 35.4 in. (900 mm)Manufacturer spec
Cargo Box Width
54.5 in. (1,384 mm)Manufacturer spec
Cargo Box Capacity
Volume - 26.4 cu. ft. (0.74 m3)Manufacturer spec
Cargo Box
1,212 lb. (550 kg)Manufacturer spec
Safety Features
Seat belts - 2-point Tubular overhead structure - 2.0 in. (50.8 mm) steel tube Certification - SAE J2194 and OSHA 1928 ROPSManufacturer spec

From the dealer's page

Experience the next level of productivity with the Kubota RTV-X LONG BED. Powered by Kubota’s rugged 23.3 HP diesel engine and equipped with a VHT-X transmission, the RTV-X LONG BED delivers exceptional torque, control, and reliability for a full day's work. The LONG BED features a durable 6-foot metal cargo bed with standard ProKonvert™—allowing you to fold down or remove the side panels without tools for unmatched versatility and productivity. Introducing the new 1-row RTV-X LONG BED: Tough and Dependable. Power Your Productivity. Capability Reimagined. North America's #1-Selling Diesel UTV* *Based on Power Products Marketing North American 2024 sales data for the Pure Utility Vehicle (PUV) segment.
