2025 Harley-Davidson Low Rider ST
0 likes, 0 dislikes
$23,999
MotorcycleUsed895 miNew to ThrottleSB035648
Trak Powersports· Eugene, OR
Specs
- New or used
- Used
- Availability
- In stock
- Colour
- Blue Burst (Chrome Finish)
- Available colours
- Billiard Gray (Chrome Finish) Vivid Black (Chrome Finish) Blue Burst (Chrome FinManufacturer spec
- Horsepower
- 114 hpManufacturer specDealer: 114 hp (85 kW) @ 5,000 rpm
- Torque
- 128 lb-ftManufacturer specDealer: 128 ft. lb. (174 Nm)5 @ 4,000 rpm Testing method - J1349 Drag-torque Slip Control System (DSCS), Cornering Drag-Torque Slip Control System (C-DSCS)
- Displacement
- 1,923 ccManufacturer specDealer: 1,923 cc (117 ci)
- Transmission
- ManualManufacturer specDealer: 6-Speed Cruise Drive® Capacity - 1 qt. (0.95 l)
- Final drive
- BeltManufacturer spec
- Mileage
- 8,458 mi
- Seat height
- 27 inManufacturer specDealer: Laden - 27 in. (686 mm)8 Unladen - 28.1 in. (715 mm)
- Wheelbase
- 63.6 inManufacturer specDealer: 63.6 in. (1,615 mm)
- Ground clearance
- 5.7 inManufacturer specDealer: Static - 5.7 in. (145 mm) Lean Angle Testing Method - J1168 Right / Left Lean Angle - 31.3°
- Fuel capacity
- 5 galManufacturer specDealer: 5 gal. (18.9 l) Reserve, Fuel Injection (warning light) - 1 gal. (3.8 l)
- Battery
- 12 kWhManufacturer specDealer: Sealed, maintenance-free, absorbed glass mat (AGM), 12V, 17.5Ah, 310 CCA at 0°F Charging - Three-phase, 48A system (364W @13V, 900 rpm, 624W max power @ 13V, 2,000 rpm)
- Model code
- FXLRST
- Warranty
- 24 months (unlimited mileage) First 1,000 mi. (1,600 km), every 5,000 mi. (8,000 km) thereafterManufacturer spec
- VIN
- 1HD1YXA12SB028580
- Stock #
- UA0432
All details from the dealer (32)
- Model Type
- Cruiser
Features
- MILWAUKEE-EIGHT® 117 H.O. ENGINE
- Milwaukee-Eight® 117 H.O. provides raw-but-refined power.Manufacturer spec
- TWO-INTO-ONE EXHAUST
- A redesigned exhaust allows for symmetric saddlebags.Manufacturer spec
- FAIRING
- An FXRT-inspired fairing with improved aerodynamics.Manufacturer spec
- LED LIGHTING
- 5.75-inch headlight, bright LED turn signals, and restyled taillight.Manufacturer spec
Brakes/Wheels/Tires
- Wheels
- Front / Rear - Chrome, Radiate Cast Aluminum3 Front Diameter - 19 in. (483 mm) Rear Diameter - 16 in. (406 mm) Front Width - 2.5 in. (64 mm) Rear Width - 5 in. (127 mm)Manufacturer spec
- Tires
- Front / Rear Type - Michelin® Scorcher 31 Front - 110 / 90B19, 62H, BW Rear - 180 / 70B16, 77H, BW Front / Rear Model - Scorcher 31 Tire Pressure Monitoring System (TPMS)Manufacturer spec
Dimensions
- Length
- 92.9 in. (2,360 mm)Manufacturer spec
- Height
- Overall - 50.8 in. (1,290 mm)Manufacturer spec
- Width
- 35 in. (890 mm)Manufacturer spec
Drivetrain
- Primary Drive
- Chain, 34/46 ratioManufacturer spec
- Chain
- Primary Case Capacity - 1.25 qt. (1.18 l)Manufacturer spec
Electrical
- Instrumentation

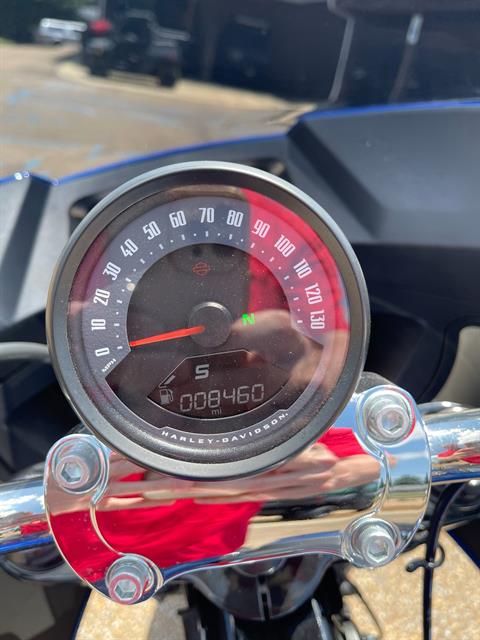

- Gauges - 4 in. analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indicationManufacturer spec
- Lighting
- (As per country regulation)2 Headlamp - All LED, low beam, high beam and signature position lamp Tail / Stop / Front Signal Lights - LED Buffett tail lamp, LED Bullet Turn SignalsManufacturer spec
- Electrical System
- Electric Power Outlet - USB C-Type, Output 5V at 2.4AManufacturer spec
Engine
- Bore x Stroke
- 4.075 x 4.5 in. (103.5 x 114.3 mm)Manufacturer spec
- Compression Ratio
- 10.3:1Manufacturer spec
- Gear Ratio
- Overall 1st - 9.311 2nd - 6.454 3rd - 4.793 4th - 3.882 5th - 3.307 6th - 2.79Manufacturer spec
- Clutch
- Mechanical, 10 plate wet, assist and conventionalManufacturer spec
- Fuel System
- Electronic Sequential Port Fuel Injection (ESPFI)6Manufacturer spec
- Exhaust
- 2-into-1, catalyst in headerManufacturer spec
- Starting
- 1.6 kW electric with solenoid shift starter motor engagementManufacturer spec
- Lubrication
- System - Pressurized, dry-sump with oil coolerManufacturer spec
- Oil Capacity
- With filter - 5 qt. (4.7 l)Manufacturer spec
- MPG Rating
- Estimated City / Hwy - 47 mpg (5 l/100 km)4Manufacturer spec
Operational
- Front Suspension
- Travel - 5 in. (130 mm)Manufacturer spec
- Rear Suspension
- Shocks - Hidden, free piston, coil-over monoshock, 56 mm stroke, hydraulic preload adjustment Travel - 4.4 in. (112 mm)Manufacturer spec
- Rake
- Steering head - 28°Manufacturer spec
- Trail
- 5.7 in. (145 mm)Manufacturer spec
- Capacity
- Luggage-Volume - 2 cu. ft. (0.056 cu. m)Manufacturer spec
- Fork
- Front - Single cartridge 43 mm inverted with aluminum fork triple clamps, single rate spring Angle - 28°Manufacturer spec
Other
- Includes
- Security System Cruise ControlManufacturer spec
From the dealer's page
Heritage-inspired tank graphics and an FXRT-style fairing look retro, but the Low Rider ST is a modern performance motorcycle with a Milwaukee-Eight® 117 High Output V-twin engine.
