Specs
- New or used
- New
- Availability
- In stock
- Colour
- Metallic Deep Red / Ebony
- Torque
- 73.8 lb-ftManufacturer specDealer: Maximum - 73.8 ft. lb. @ 8,000 rpm
- Displacement
- 999 ccManufacturer spec
- Cylinders
- 4Manufacturer spec
- Engine cycle
- Four-strokeManufacturer specDealer: 4-stroke, DOHC, 4-valve
- Cooling
- Liquid-cooledManufacturer spec
- Fuel
- GasManufacturer spec
- Transmission
- CVTManufacturer spec
- Wheelbase
- 122.2 inManufacturer spec
- Ground clearance
- 13.4 inManufacturer specDealer: 13.4 / 14.6 in. (max preload)
- Towing capacity

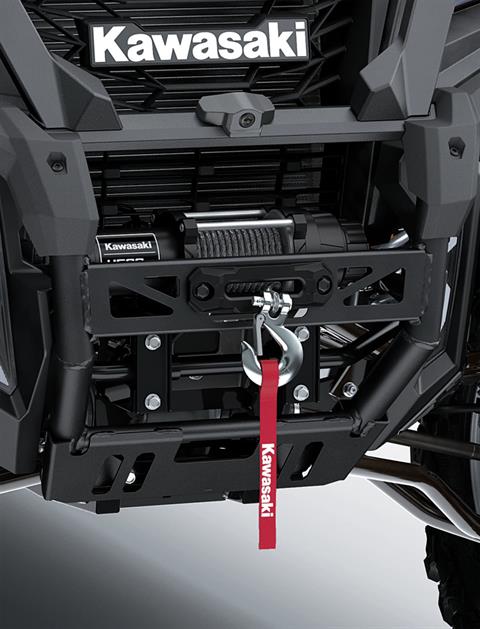

- 2,500 lbManufacturer specDealer: 2,500 lb. 4,500-lb. winch with synthetic rope
- Fuel capacity
- 12.9 galManufacturer spec
- Seating

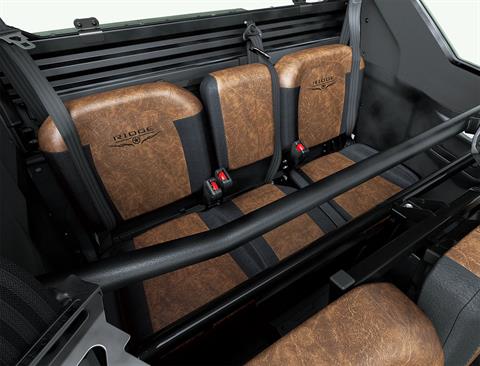

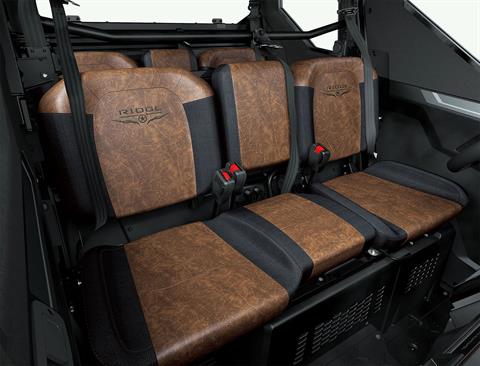

- 6Manufacturer specDealer: 6-person (2 row), bench Adjustable driver's seat
- Model code
- KWT1000NVFNN
- Warranty
- 36 Months limitedManufacturer spec
All details from the dealer (31)
- Stock Number
- VB504248
- Model Type
- RIDGE - 4- to 6-Passenger
- VIN
- JKAWTCN19VB504248
General Information
- Stock Number
- VB504248Manufacturer spec
Brakes/Wheels/Tires
- Brakes
- Front - Dual hydraulic 249 mm discs with two-piston calipers Rear - Dual hydraulic 249 mm discs with single-piston calipers Engine BrakingManufacturer spec

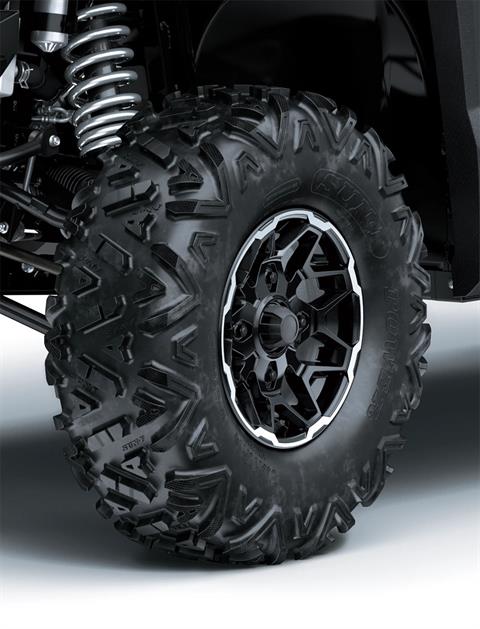

- Wheels
- 14 in. aluminumManufacturer spec
- Tires
- Front / Rear - SUNF 30 x 10-14Manufacturer spec
Dimensions
- Length
- Overall - 157.9 in.Manufacturer spec
- Height
- Overall - 82.3 in.Manufacturer spec
- Width
- Overall - 64.0 in.Manufacturer spec
- Turning Radius
- 19.0 ft.Manufacturer spec
Drivetrain
- Final Drive
- Selectable 4WD with locking front / rear differential, shaftManufacturer spec
Electrical
- Alternator
- Output (max) - 85AManufacturer spec

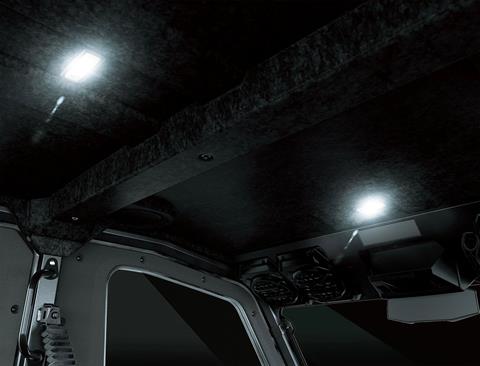

- Lighting
- All-LEDManufacturer spec
- Advanced Electronics
- Electronic Rider Aids - Power Modes, Economical Riding IndicatorManufacturer spec
Engine
- Bore x Stroke
- 2.9 x 2.3 in. (73.4 x 59.0 mm)Manufacturer spec
- Compression Ratio
- 10.6:1Manufacturer spec
- Fuel System
- EFIManufacturer spec
- Ignition
- TCBI with digital advanceManufacturer spec
- Starting
- ElectricManufacturer spec
Operational
- Frame
- Ladder type, tubular steelManufacturer spec
- Front Suspension
- Long-travel, double wishbone Wheel travel - 12.7 in.Manufacturer spec
- Rear Suspension
- Long-travel, double wishbone Wheel travel - 12.7 in.Manufacturer spec
- Steering
- Rack-and-pinion with Electric Power Steering (EPS)Manufacturer spec
Other
- Includes

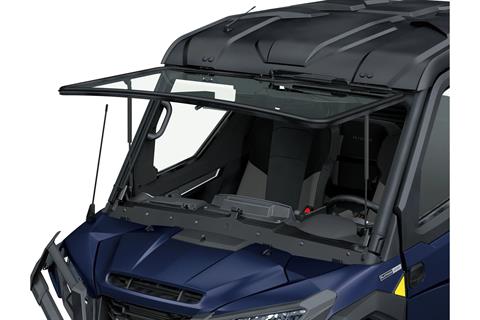

- Flip-up windshield, Full Cab with HVAC, Front stabilizer bar, ERGO-FIT®, USB ports, KQR™ system compatibleManufacturer spec

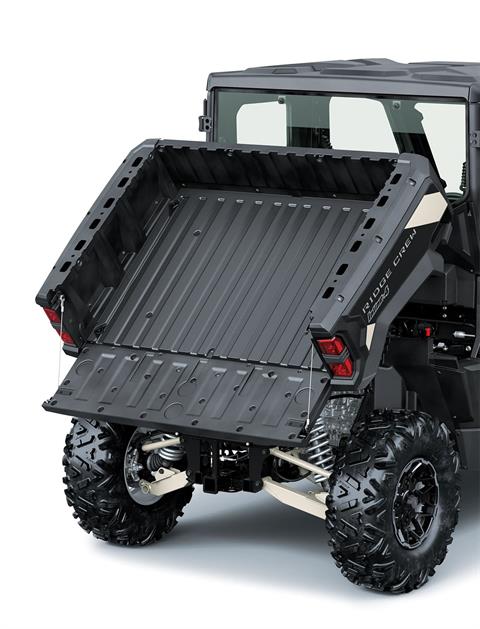

- Cargo Box Length
- Cargo bed dimensions - 34.6 in.Manufacturer spec
- Cargo Box Height
- Cargo bed dimensions - 12.8 in.Manufacturer spec
- Cargo Box Width
- Cargo bed dimensions - 49.0 in.Manufacturer spec
- Cargo Box Capacity
- 1,000 lb.Manufacturer spec
- Capacity
- Payload - 1,290 lb.Manufacturer spec
- Safety Features

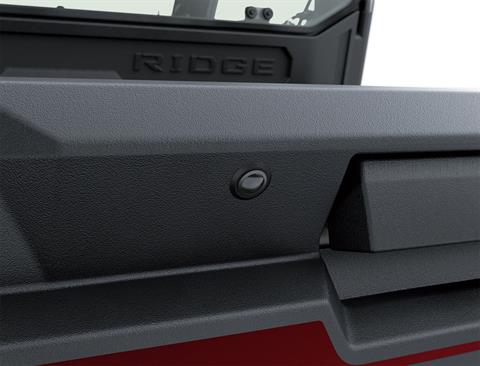

- Front / rear cameras, Brush guardsManufacturer spec
From the dealer's page

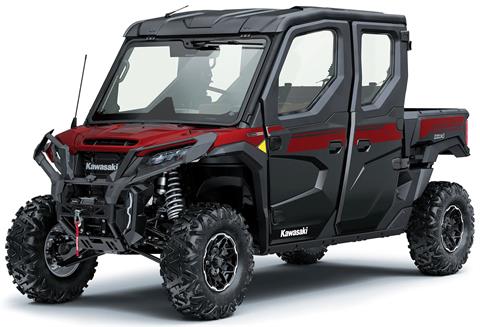

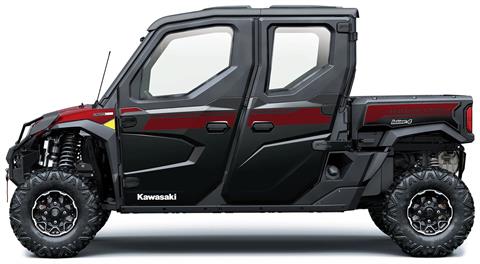

With seating up to 6, Kawasaki RIDGE® CREW side x sides raise the standard for those who demand versatile, all-season confidence, and Kawasaki build quality. Power comes from a groundbreaking 999cc Kawasaki-built in-line 4-cylinder engine, delivering performance you can count on—on the job and beyond.
Price history
Tracked since Sep 30, 2026 · last checked 2h ago
Price details as printed by the dealer
- Price$37,999
Throttle does not add these up.
Timeline
First seen
Sep 30, 2026
Market context
Comp set: 2025–2029 Kawasaki RIDGE CREW Platinum Ranch HVAC · 1 listing
Fewer than three comparable units are indexed, so there is no honest median to compare against yet. We would rather show nothing than a number we cannot stand behind.
How rare
- The only Kawasaki RIDGE CREW Platinum Ranch HVAC on Throttle today
- The only Kawasaki RIDGE CREW Platinum Ranch HVAC in the red family on Throttle today
Counts of listings for sale on Throttle today, one machine counted once. Throttle indexes the dealer sites it has vetted, not every dealer.
