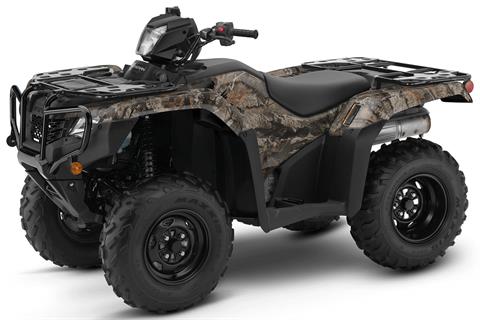

2026 Honda FourTrax Foreman 4x4
0 likes, 0 dislikes
$8,702
ATVNewNew to ThrottleTJ200138
CLAWSON MOTORSPORTS· Fresno, CA
Specs
- New or used
- New
- Availability
- In stock
- Colour
- TrueTimber® Atera Camo
- Available colours
- Hero Red Black Forest Green TrueTimber® Atera CamoManufacturer spec
- Displacement
- 518 ccManufacturer spec
- Cylinders
- 1Manufacturer specDealer: Single
- Engine cycle
- Four-strokeManufacturer spec
- Cooling
- Liquid-cooledManufacturer specDealer: Liquid
- Fuel
- GasManufacturer spec
- Transmission
- ManualManufacturer spec
- Drive
- 4WDManufacturer specDealer: 4x4
- Seat height
- 34.5 inManufacturer spec
- Wheelbase
- 50 inManufacturer spec
- Ground clearance
- 7.5 inManufacturer spec
- Wet weight
- 635 lbManufacturer spec

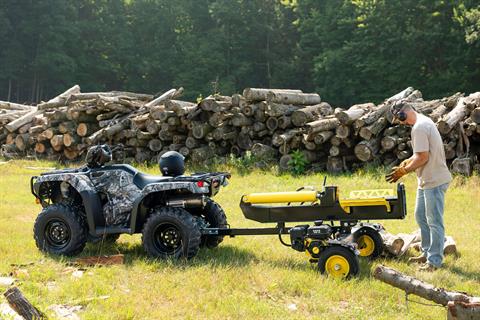

- Towing capacity
- 848 lbManufacturer spec
- Fuel capacity
- 3.9 galManufacturer specDealer: 3.9 gal. including 1.3 gal. reserve
- Model code
- TRX520FM1V
- Warranty
- Transferable, one year included, limitedManufacturer spec
- Stock #
- N/A
All details from the dealer (17)
- Stock Number
- N/A
- Model Type
- FourTrax Foreman 4x4
General Information
- Stock Number
- N/AManufacturer spec
Brakes/Wheels/Tires
- Brakes
- Front - Dual 7.5 in. (190 mm) discs Rear - 6.3 in. (160 mm) drumManufacturer spec

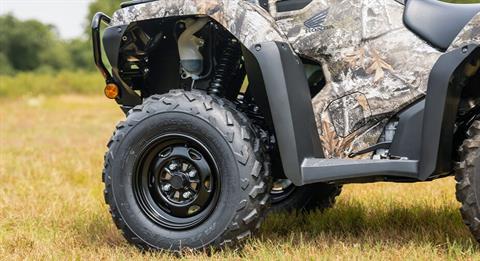

- Tires
- Front - 25 x 8 - 12 Rear - 25 x 10 - 12Manufacturer spec
Dimensions
- Length
- 82.9 in.Manufacturer spec
- Height
- 47.8 in.Manufacturer spec
- Width
- 47.4 in.Manufacturer spec
- Turning Radius
- 10.5 ft.Manufacturer spec
Drivetrain
- Drive

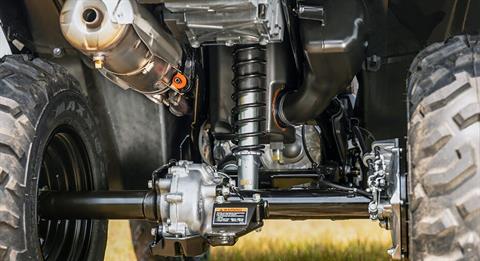

- Driveline - Direct front and rear driveshafts with torque-sensitive locking front differentialManufacturer spec

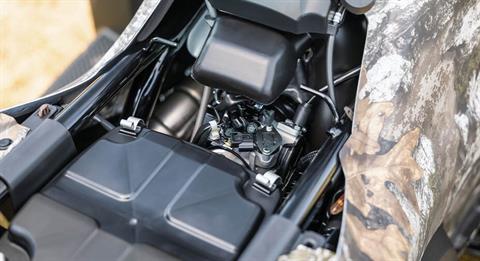

Engine
- Bore x Stroke
- 3.8 x 2.8 in. (96 x 71.5 mm)Manufacturer spec
- Compression Ratio
- 9.5:1Manufacturer spec
- Fuel System
- Induction - Programmed fuel injection system (PGM-FI); 1.4 in. (36 mm) throttle bodyManufacturer spec
- Emissions
- Meets current EPA off-road emissions standardsManufacturer spec
- Starting
- Electric with optional auxiliary recoilManufacturer spec
Operational
- Suspension

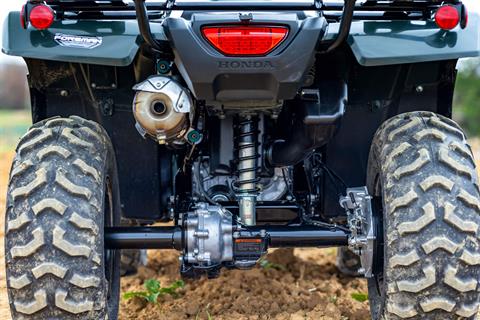

- Front - Independent double-wishbone; 7.3 in. travel Rear - Swingarm with single shock; 7.3 in. travelManufacturer spec
- Capacity
- Front rack - 88 lb. Rear rack - 176 lb.Manufacturer spec
From the dealer's page
Some folks work nine to five. Some of us work from sunup to sundown. But the Honda Foreman 4x4—it never quits. Our legendary Honda reliability means it’s ready when you need it. Its powerful 518cc engine and long-travel suspension are just the start. Through smart engineering, unmatched build quality and a rich list of proven features, the Foreman 4x4 doesn't just work hard, it works better. It’s an ATV that not only you can count on, but the next generation can too.
Price history
Tracked since Oct 4, 2026 · last checked 3h ago
Price details as printed by the dealer
- Price$8,749
Throttle does not add these up.
Not enough observations yet — the chart appears after the second crawl of this listing.
Timeline
First seen
Oct 4, 2026
Market context
Comp set: 2025–2029 Honda FourTrax Foreman 4x4 · 124 listings
- Median asking
- $8,249
- across 100 comparable listings
- This one
- $8,749
- +6.1% vs median
- Days on market
- New to Throttle
- no sold comps yet
- Sold comps
- —
- none confirmed yet
