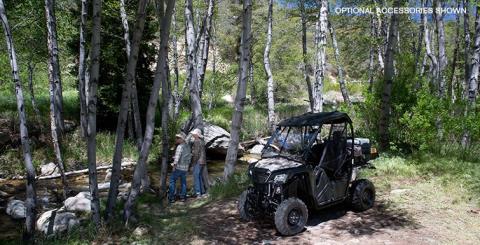

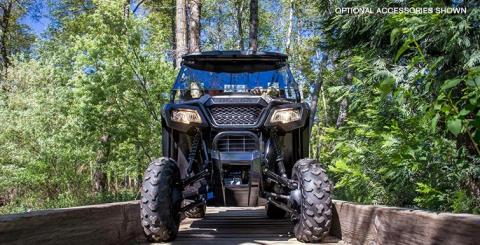

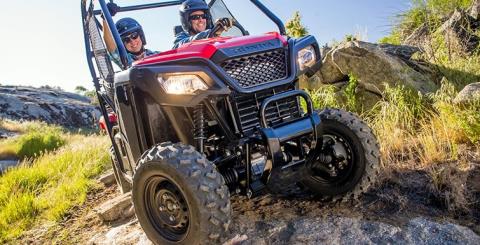

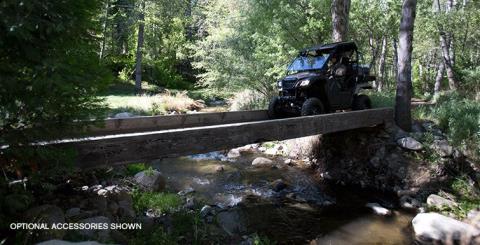

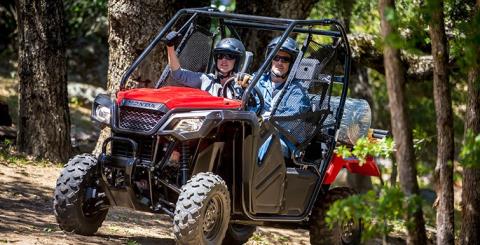

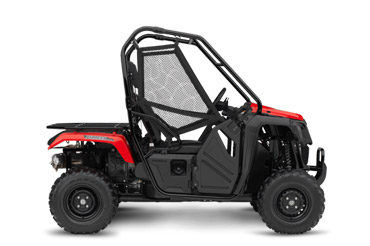

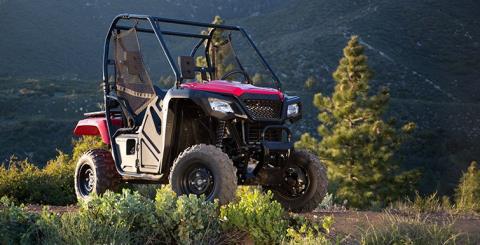

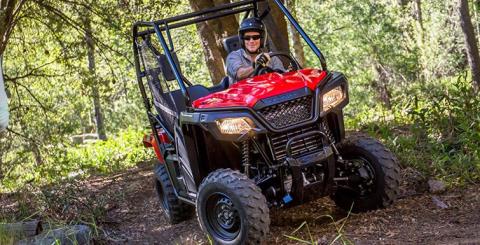

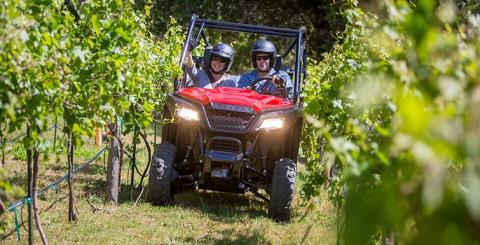

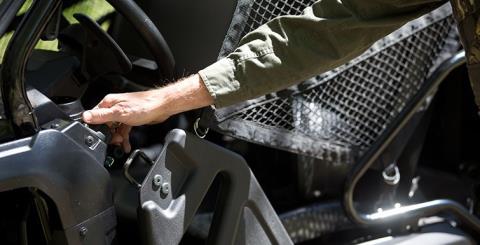

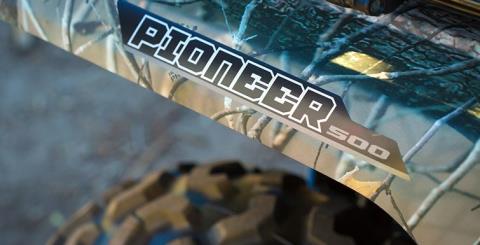

2016 Honda Pioneer 500 — photo 1 of 21
1 / 21

Specs

New or used
Used
Availability
In stock
Colour
Red
Available colours
Metallic Blue, Honda Phantom Camo®Manufacturer spec
Displacement
475 ccManufacturer spec
Cylinders
1Manufacturer specDealer: 475cc liquid cooled single cylinder four-stroke
Engine cycle
Four-strokeManufacturer spec
Cooling
Liquid-cooledManufacturer spec
Transmission
ManualManufacturer specDealer: Electric-shift 5-speed with reverse
Drive
Direct front & rear driveshaftsManufacturer spec
Mileage
1 mi
Wheelbase
73.1 inManufacturer spec
Ground clearance
9.6 inManufacturer spec
Dry weight
1,010 lbManufacturer spec
Towing capacity
1,000 lbManufacturer spec
Model code
SXS500M2G
VIN
1HFVE0300G4101938
Stock #
HON101938
All details from the dealer (15)
Model Type
SxS

Brakes/Wheels/Tires

Brakes
Front - 200 mm hydraulic disc Rear - 170 mm hydraulic discManufacturer spec
Tires
Front - 24 x 8-12 Rear - 24 x 10-12Manufacturer spec

Dimensions

Length
102.5 in.Manufacturer spec
Height
72.4 in.Manufacturer spec
Width
50 in.Manufacturer spec
Turning Radius
12.8 ft.Manufacturer spec

Engine

Bore x Stroke
92 x 71.5 mmManufacturer spec
Compression Ratio
9.5:1Manufacturer spec
Clutch
AutomaticManufacturer spec
Fuel System
Electronic fuel injection (PGM-FI); 36 mm throttle bodyManufacturer spec
Ignition
Full-transistorized type with electronic advanceManufacturer spec
Fuel Tank Capacity
3.96 gal. including 1.1 gal. reserveManufacturer spec

Operational

Suspension

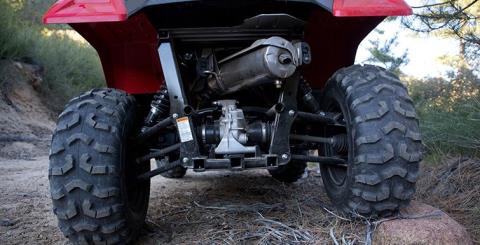

Front - Independent double-wishbone; 5.9 in. travel Rear - Independent double-wishbone with preload adjustibility; 5.9 in. travelManufacturer spec

Other

Options
Recommended for Drivers 16 years of age and older.Manufacturer spec

From the dealer's page

The Pioneer 500 is a brilliant concept: Like a full-sized side-by-side, it lets you take a passenger along and has the off-road capability to get you where you need to go. But the Pioneer 500 is a new take on the SxS formula: it’s narrow, fits on tight trails, is fun to drive and easy to load into a full-size truck bed. But you still get a full-sized list of features, like Independent Rear Suspension, four-wheel drive, and paddle shifting. And that’s just the start. Want to go where other side-by-side's can't? The Pioneer 500 can get you there and back again, and you’ll have fun doing it.

Price history

Tracked since Oct 3, 2026 · last checked 1d ago

Not enough observations yet — the chart appears after the second crawl of this listing.

Timeline

  1. First seen

    Oct 3, 2026

Market context

Comp set: 2014–2018 Honda Pioneer 500 · 4 listings

Median asking
$5,995
across 3 comparable listings
This one
Price not listed. Ask the dealer.
We could not find a price on the dealer's page.
Days on market
1d
no sold comps yet
Sold comps
—
none confirmed yet

The median above describes the segment. This unit is not in it, because we have no asking price we can stand behind for it — See the dealer's listing.
