Jet Black / Pure White • New Motorcycles

Available at

MOMS Foxboro

Model Type

Off-Road

Model Code

NA

Brakes & Wheels

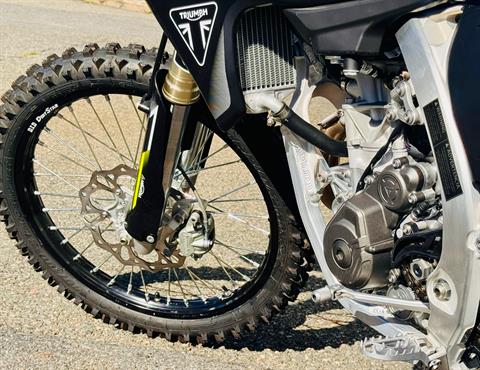

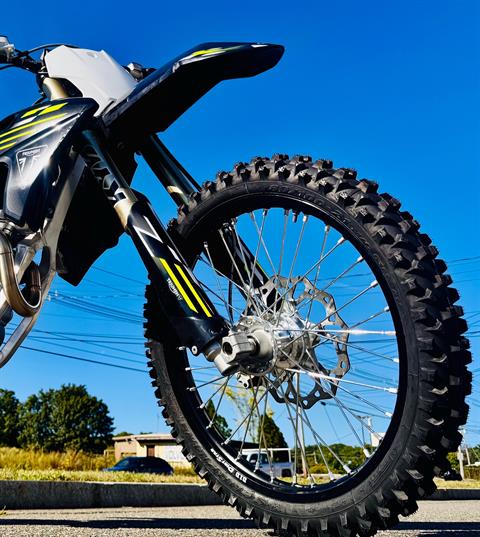

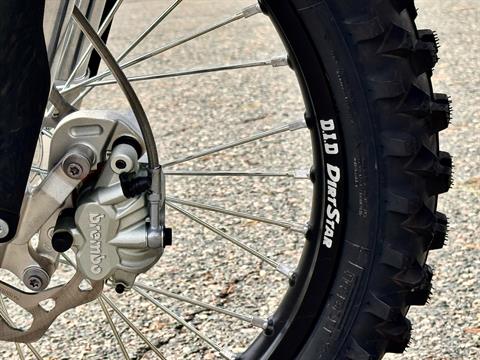

D.I.D DIRTSTAR RIMS

7000-series alloy with Triumph-designed hubs. Tough and light.Manufacturer spec

PIRELLI MX32 TIRES

Race-spec tires for optimal grip on mid-soft terrain.Manufacturer spec

Chassis

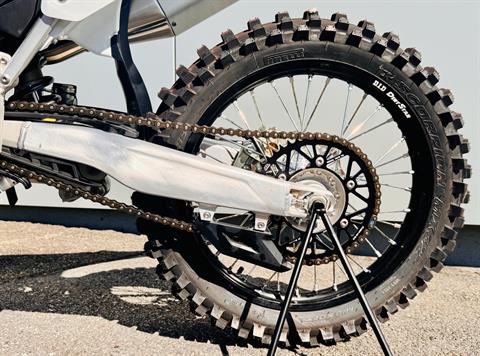

FABRICATED SWINGARM

Hydroformed main beams reduce weight and maximize rear grip.Manufacturer spec

OPTIMIZED LINKAGE SYSTEM

Developed with race teams for elite-level performance and comfort.Manufacturer spec

Electronics

HOUR METER

Discrete, integrated tracking of engine hours.Manufacturer spec

LAUNCH CONTROL

Standard-fit with adjustable levels via WiFi or LC-GPA modules.Manufacturer spec

SENSOR DASHBOARD

Displays live sensor data, service timing and diagnostics.Manufacturer spec

Engine

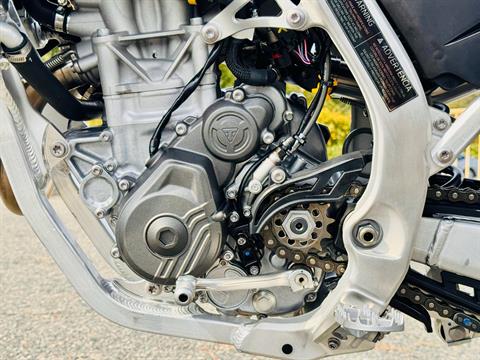

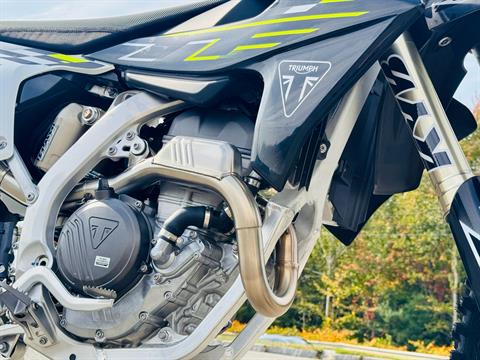

MASS-OPTIMIZED LAYOUT

Ultra-compact, low-inertia design enhances throttle response and agility.Manufacturer spec

QUICKSHIFTER

Standard-fit for clutchless upshifts from 2nd to 5th gear.Manufacturer spec

EXEDY CLUTCH + 5-SPEED GEARBOX

Belleville spring clutch with Brembo hydraulics. Tough, precise transmission.Manufacturer spec

Exhaust System

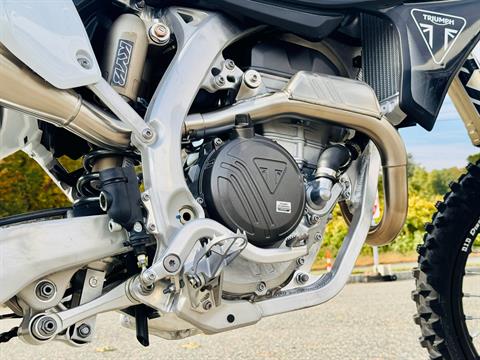

STAINLESS STEEL OE EXHAUST

Integrated resonators and hydroformed mid-pipe for performance and tone.Manufacturer spec

Features

CLASS-LEADING POWER TO WEIGHT

47.3 PS peak power at 13,250rpm.Manufacturer spec

INDUSTRY LEADING KYB SUSPENSION

Industry leading damping out of the box.Manufacturer spec

PERFORMANCE TECH

Launch control, traction control, quickshifter, dual engine maps.Manufacturer spec

RACE-DEVELOPED CHASSIS

Lightweight Aluminum frame and linkage tuned for control.Manufacturer spec

Suspension

ODI GRIPS

Half-waffle lock-on grips for pro-level connection.Manufacturer spec

General Information

Model Code

NAManufacturer spec

Brakes/Wheels/Tires

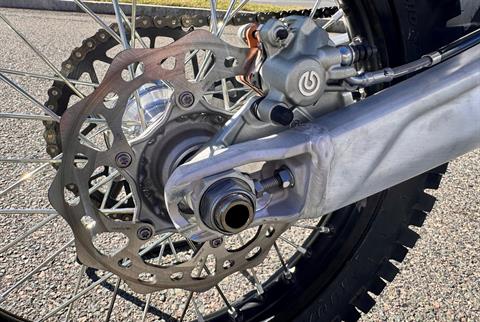

Brakes

Front - Twin, 10.24 in. (260 mm) disc, Brembo, twin-piston floating caliper (0.08 x 0.94 in. (2 x 24 mm) pistons) Rear - Single, 8.7 in. (220 mm) disc, Brembo, 1.02 in. (26 mm) single-piston floating caliperManufacturer spec

Wheels

Front - 21 x 1.6 in. Rear - 19 x 1.85 in.Manufacturer spec

Tires

Front - 80 / 100-21 Rear - 100 / 90-19Manufacturer spec

Dimensions

Height

49.5 in.Manufacturer spec

Width

32.6 in.Manufacturer spec

Electrical

Instrumentation

Hour meter, multi-function switch cubesManufacturer spec

Engine

Bore x Stroke

3.07 x 2 in. (78 x 50.8 mm)Manufacturer spec

Compression Ratio

14.4Manufacturer spec

Clutch

Wet, multi-plate, spring (Belleville)Manufacturer spec

Fuel System

Dell’Orto throttle body, Athena EMSManufacturer spec

Exhaust

Single silencerManufacturer spec

Operational

Frame

Spine and double cradle, aluminumManufacturer spec

Front Suspension

KYB 1.9 in. (48 mm) coil spring fork, compression and rebound adjustment, 12.20 in. (310 mm) travelManufacturer spec

Rear Suspension

KYB coil, compression adjustment (high and low speed), rebound adjustment, 12.0 in. (305 mm) travel ​ Swingarm - Aluminum fabricationManufacturer spec

Rake

27.4 °Manufacturer spec

Trail

4.5 in.Manufacturer spec
