Specifications

GVWR

656

Height

4.58

Horsepower

180 up to 8,000 ft.

Drive System

Sprocket Pitch: 73 mm / 2.86 (146 – 154 x 2.5 in.) | 89 mm / 3.5 (154 x 3.0 – 165 in.)

Rear Track Shock

KYB Pro 40 EA-3

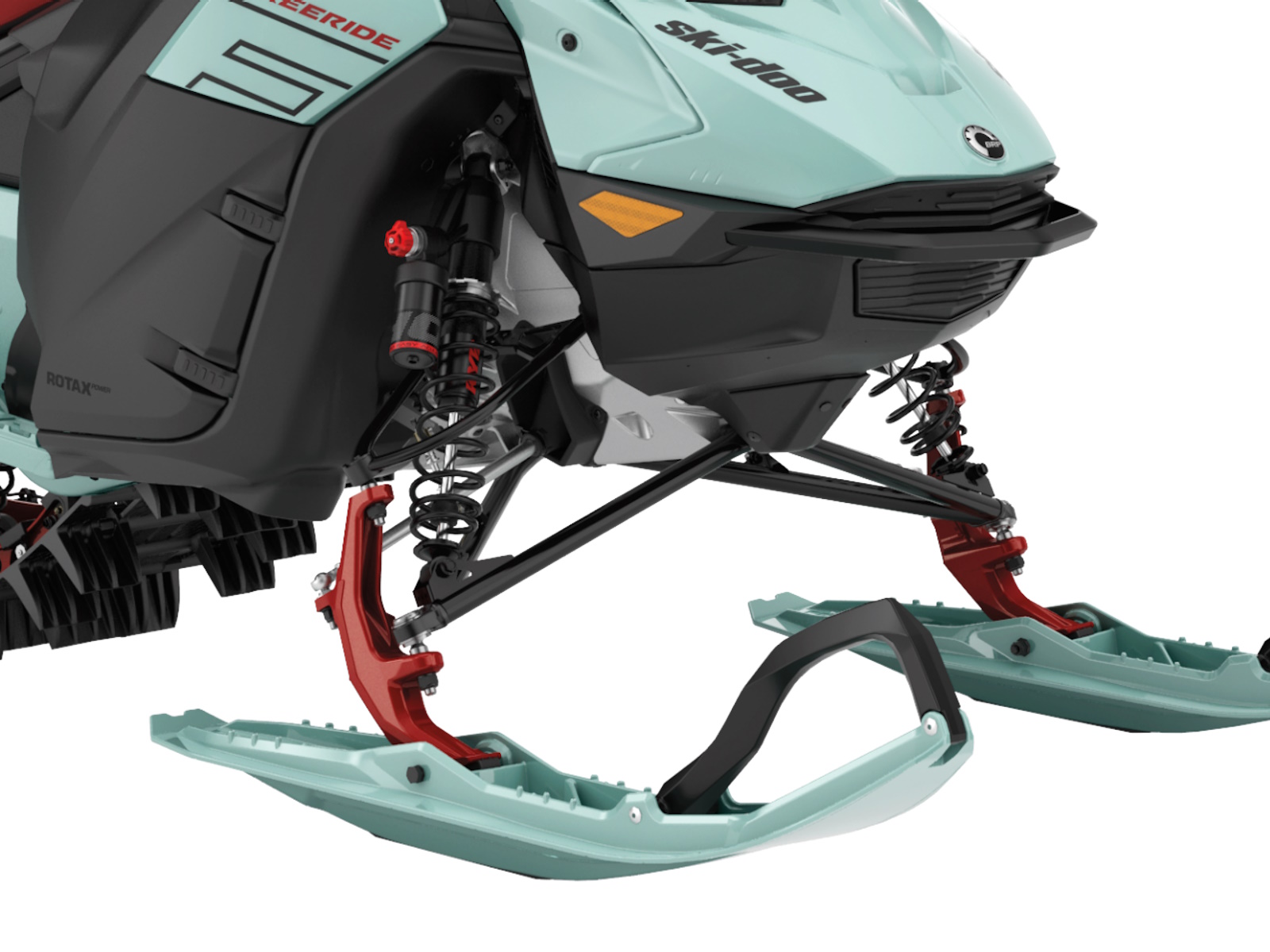

Front Suspension

RAS 3

Ski Type

Pilot DS 4

Track Width

PowderMax: 15 in | PowderMax X-Light: 15 in

Seating

Deep snow compact

Brake

Brembo with adjustable lever

Rear Travel

264 mm / 10.4 in

Rear Suspension

Motion XT with rail reinforcements

Ski Center Distance

930 mm / 36 in (adjustable)

Length

3,188 mm /125.5 (154 in.)

Track Length

PowderMax: 146 in | PowderMax X-Light: 154 in

Headlight(s)

Premium high-performance LED

Engine (Displacement)

2 – 849 cc

Bore x Stroke

82 mm x 80.4 mm

Clutch

pDrive with clickers QRS Vent Plus

Front Track Shock

KYB Pro 40 EA-3 w/ lightweight springs

Front Travel

215 mm / 8.5 in

Oil Capacity

Tank: 3.4 L / 3.6 qt

Width

1,073 mm / 42.2 in (adjustable)

Throttle

Standard

Handlebar

Tapered U-shaped aluminum with J-hooks/Low grab handle

Fuel Gauge

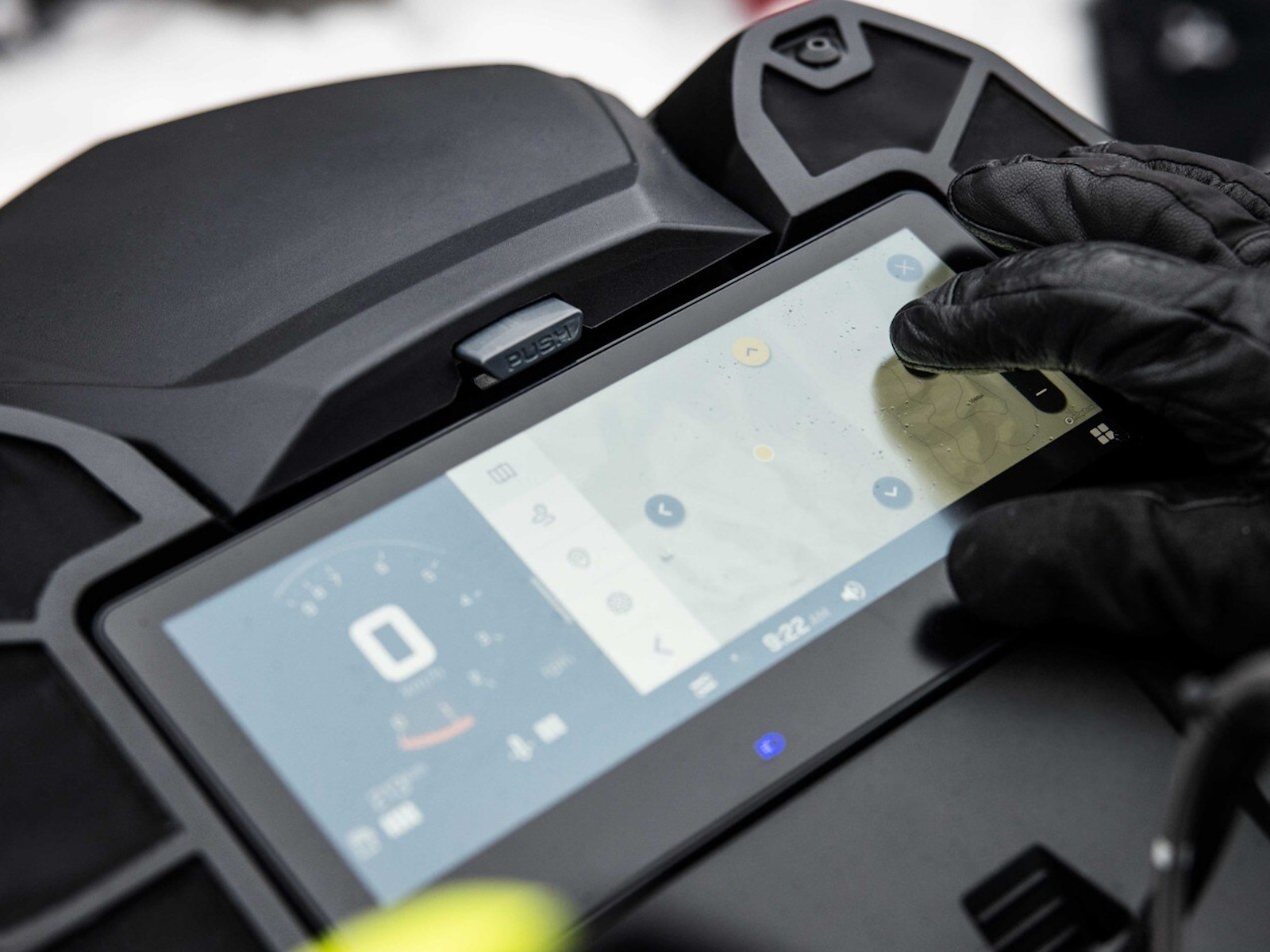

4.5 in.digital | 10.25 in. touchscreen (opt.)

Reverse

RER

Windshield

Optional

Riser Type

Block Height: 120 mm / 4.7 in
