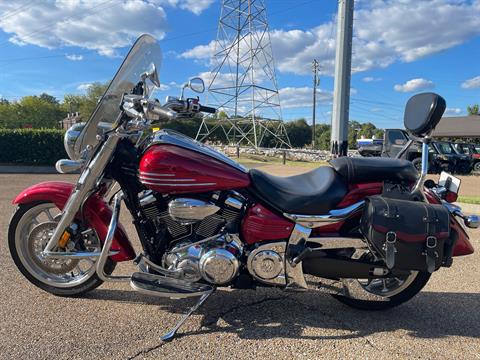

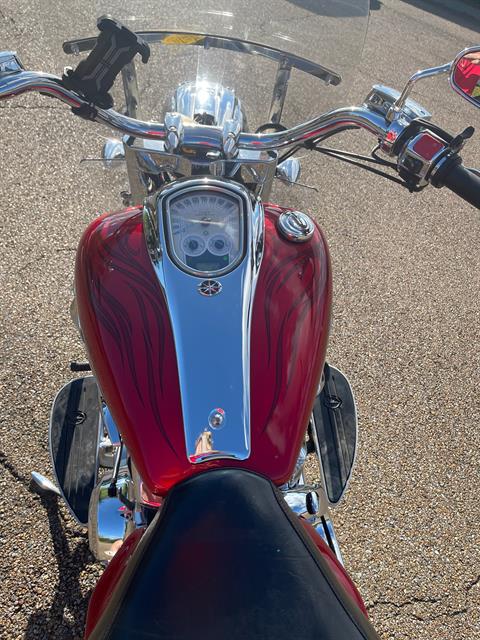

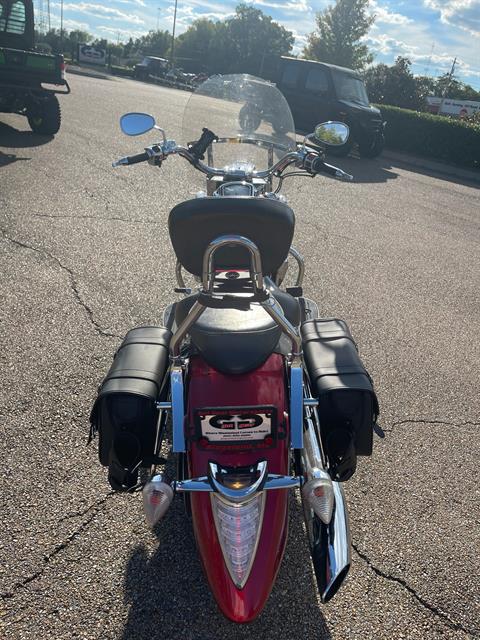

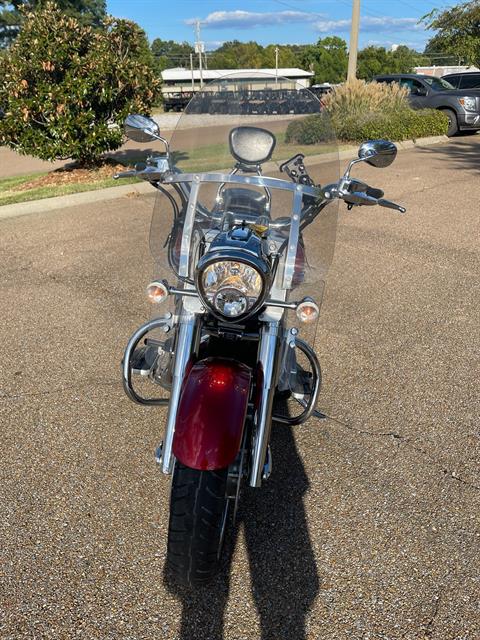

2009 Yamaha Roadliner S — photo 1 of 7
1 / 7

Specs

New or used
Used
Availability
In stock
Colour
Candy Red With Flames
Displacement
1,852 ccManufacturer specDealer: 113 ci (1,854 cc)
Cylinders
2Manufacturer specDealer: 48° V-twin, pushrod OHV, 4 valves / cylinder
Cooling
Air-cooledManufacturer spec
Transmission
ManualManufacturer specDealer: 5-speed
Final drive
BeltManufacturer spec

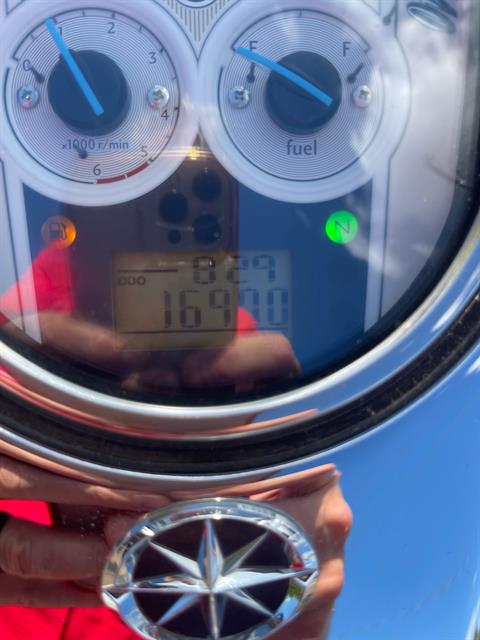

Mileage
16,969 mi
Seat height
27.8 inManufacturer spec
Wheelbase
67.5 inManufacturer spec
Ground clearance
6.1 inManufacturer spec
Dry weight
749 lbManufacturer spec
Model code
XV19SYR
VIN
JYAVP21E59A006418
Stock #
UA0456
All details from the dealer (22)
Model Type
Star

Additional Features

Additional Features
A sculpted seat makes the Roadliner S an excellent place to sit on long rides.Manufacturer spec
Additional Features
Position beams within the main headlight housing provide great visibility.Manufacturer spec
Additional Features
Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.Manufacturer spec
Additional Features
Bright multi-reflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.Manufacturer spec
Additional Features
Oxygen sensor and three-way catalyst reduce emissions.Manufacturer spec

Key Features

Key Features

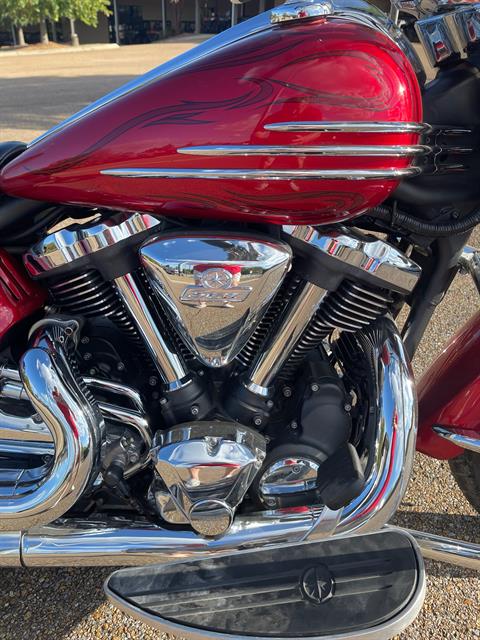

Powerful and beautiful 113-cubic-inch (1,854 cc) air-cooled, pushrod V-twin produces great thrust at any speed.Manufacturer spec
Key Features
Neo-streamline design, gives the Roadliner S a completely distinctive look.Manufacturer spec
Key Features
A sculpted seat makes the Roadliner S an excellent place to sit on long rides.Manufacturer spec

Brakes/Wheels/Tires

Brakes
Front: Dual 298 mm hydraulic discs Rear: 320 mm hydraulic discManufacturer spec
Tires
Front: 130/70-18 Rear: 190/60-17Manufacturer spec

Dimensions

Length
101.6 in.Manufacturer spec
Height
43.3 in.Manufacturer spec
Width
36.8 in.Manufacturer spec

Engine

Bore x Stroke
100 x 118 mmManufacturer spec
Compression Ratio
9.48:1Manufacturer spec
Clutch
Multi-plate wetManufacturer spec
Fuel System
Twin-bore electronic fuel injection with throttle position sensorManufacturer spec
Ignition
TCIManufacturer spec
MPG Rating
42 mpgManufacturer spec

Operational

Frame
Aluminum monoshockManufacturer spec
Suspension
Front: 46 mm telescopic fork with adjustable preload; 5.1 in. travel Rear: Single shock; 4.3 in. travelManufacturer spec

From the dealer's page

THERE'S REALLY NO REPLACEMENT FOR CUBIC INCHES And it's hard to argue with 113 of them. Our biggest V-twin is also our boldest, with a highly advanced fuel-injected engine producing peak torque at only 2,500 rpm. And an aluminum frame for the kind of solid, precise handling nothing else in its class can touch.

Price history

Tracked since Oct 4, 2026 · last checked 12d ago

Price details as printed by the dealer

  1. Price$5,995

Throttle does not add these up.

  • Got Gear Motorsports (this listing)

Prices as listed by dealers; auction results labelled; a dashed gap = no listed price.

Timeline

  1. First seen

    Oct 4, 2026

Market context

Comp set: 2007–2011 Yamaha Roadliner S · 2 listings

Fewer than three comparable units are indexed, so there is no honest median to compare against yet. We would rather show nothing than a number we cannot stand behind.
