Specs
- New or used
- New
- Availability
- In stock
- Colour
- Green
- Displacement
- 397 ccManufacturer spec
- Cylinders
- 1Manufacturer spec
- Engine cycle
- Two-strokeManufacturer specDealer: Type - 400, 2-Stroke
- Cooling
- Liquid-cooledManufacturer specDealer: Liquid Coolant system capacity - 4.6 qt. Heat exchanger - Front long tunnel
- Fuel
- GasManufacturer specDealer: Minimum octane - 91
- Fuel capacity
- 11.7 galManufacturer spec
- Model code
- S2027JABSTUSG
All details from the dealer (36)
- Stock Number
- ARC100183
- Model Type
- Trail
- VIN
- 4UF1S2DD9VT100183
General Information
- Stock Number
- ARC100183Manufacturer spec
Dimensions
- Length
- Overall chassis - 115 in.Manufacturer spec
- Height
- Overall chassis - 45 in.Manufacturer spec
- Width
- Overall chassis - 46 - 47 in.Manufacturer spec
Engine & Drivetrain
- Bore x Stroke
- 3.3 x 2.8 in. (85 x 70 mm)Manufacturer spec
- Fuel System
- Fuel delivery - Electronic Fuel Injected (EFI)Manufacturer spec
- Starting
- Starter - Turnkey electric startManufacturer spec
- Ignition
- Digitally Controlled CDI Engine stator output - 270W @ 3,000 rpmManufacturer spec
- Lubrication
- Electronic InjectionManufacturer spec
- Drive System
- Arctic Drive SystemManufacturer spec
- Drive Clutch
- CVTech TrailblocManufacturer spec
- Driven Clutch
- CVTech TrailblocManufacturer spec
- Drive Sprocket
- Track - 8 Tooth, 2.86 Pitch, InvoluteManufacturer spec
- Clutch Calibration
- 0 - 5,000 ft.Manufacturer spec
- Reverse
- Push-Button EngineManufacturer spec
- Transmission
- Gearing - 19 / 50 Chain pitch - 90Manufacturer spec
- Exhaust
- APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel MufflerManufacturer spec
- Brakes
- Stealth hydraulic master cylinder Standard accessories - Standard discManufacturer spec
- Oil Capacity
- System - 3.25 qt.Manufacturer spec
Operational

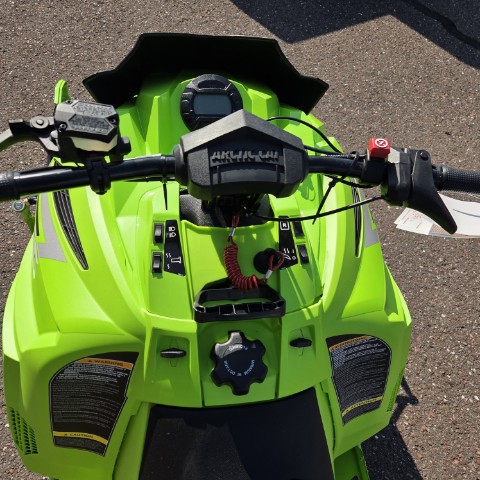

- Handlebar
- HookedManufacturer spec
- Instrumentation

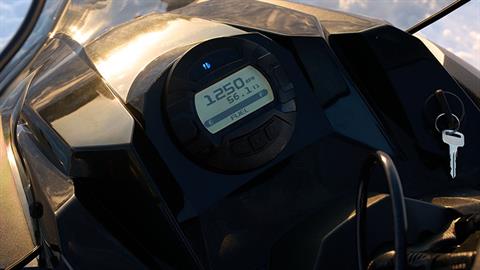

- Type of Gauge - Standard Speedometer, tachometer, odometer, fuel and hours - Digital Oil, coolant - Indicator lightManufacturer spec
- Seating or Rider capacity
- Mid-SizeManufacturer spec
- Skis
- Type - Trail Width - 6 in.Manufacturer spec
- Ski Stance
- 39.5 - 40.5 in. - AdjustableManufacturer spec
- Carbide
- Runner type - Twin SplitManufacturer spec

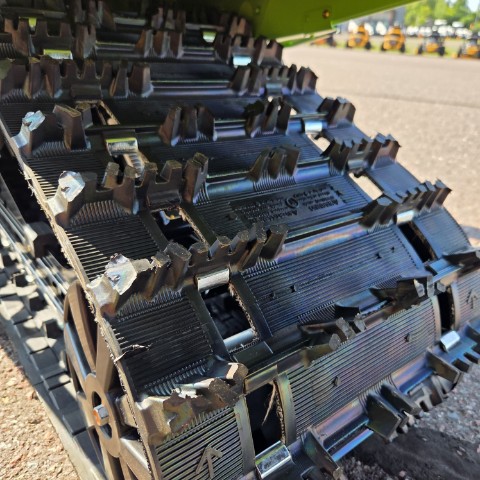

- Track Type
- RipsawManufacturer spec
- Track LxWxH
- 129 x 15 x 1.25 in.Manufacturer spec
- Pitch
- 2.86 in.Manufacturer spec
Other
- Includes
- Standard accessories - Hand & Thumb Warmers, Standard Steering, Tether Switch Windshield - 15.5 in. High / 4 in. LowManufacturer spec
- Safety Features
- Lighting - Halogen 1-BulbManufacturer spec
Suspension
- Shocks
- Ski / Front track / Rear track - AC5SManufacturer spec
- Front Suspension
- Arctic Mountain Suspension (AMS) Front travel - 7.2 in.Manufacturer spec
- Rear Suspension
- SLIDE-ACTION with 3 wheel rear axle assembly and adjustable torsion springs Rear travel - 13.5 in.Manufacturer spec
From the dealer's page

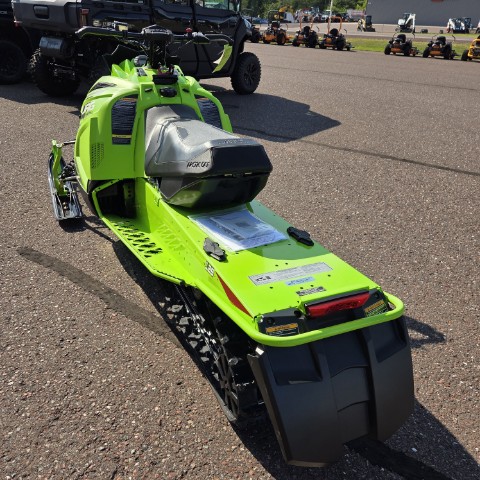

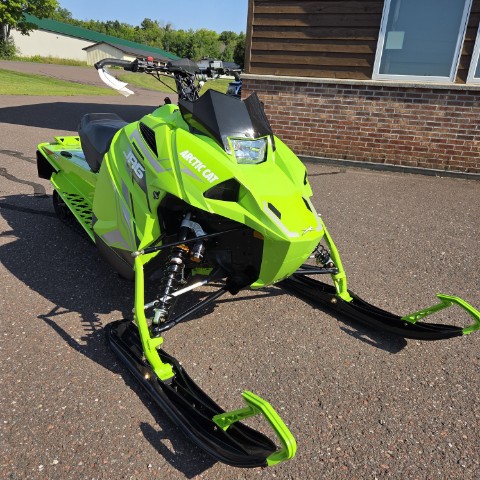

The Jag is back — bringing its race-inspired heritage to the trail in a way few expect. Compact and approachable, the Jag lineup is built to surprise, delivering sharp handling and confident cornering that punches well above its weight.
Price history
Tracked since Sep 30, 2026 · last checked 2h ago
Price details as printed by the dealer
- Price$9,999
- Destination Charge+ $800
Throttle does not add these up.
Timeline
First seen
Sep 30, 2026
Market context
Comp set: 2025–2029 Arctic Cat JAG 400 Sno Pro ES · 1 listing
Fewer than three comparable units are indexed, so there is no honest median to compare against yet. We would rather show nothing than a number we cannot stand behind.
How rare
- The only Arctic Cat JAG 400 Sno Pro ES on Throttle today
- The only Arctic Cat JAG 400 Sno Pro ES in the green family on Throttle today
Counts of listings for sale on Throttle today, one machine counted once. Throttle indexes the dealer sites it has vetted, not every dealer.
