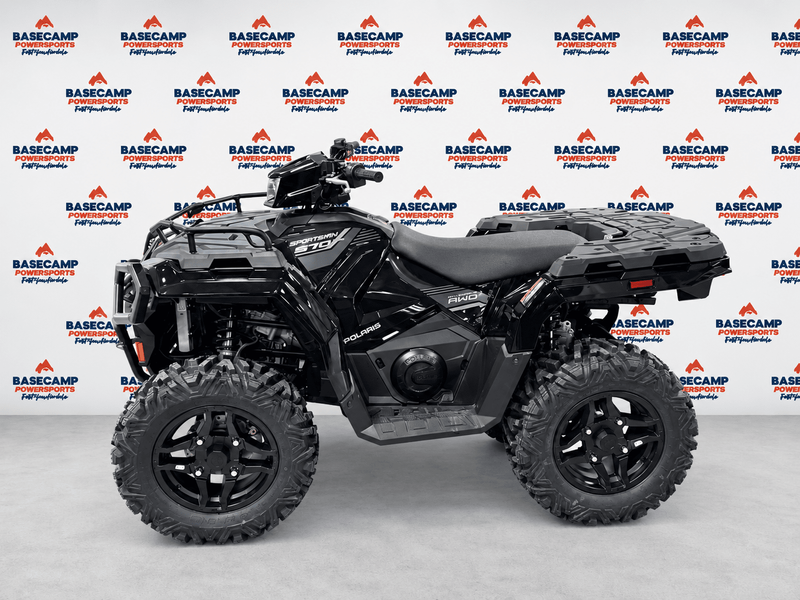

2026 Polaris SPORTSMAN 570 TRAIL ONYX BLACK — photo 1 of 8
1 / 8

Specs

New or used
New
Condition grade
Excellent
Availability
In stock
Location
Polaris KTM Medina
Colour
ONYX BLACK
Horsepower
44 hpManufacturer specDealer: 44 bhp; 32.8 kW
Displacement
567 ccManufacturer specDealer: 34.6 cu. in. (567 cc)
Cylinders
1Manufacturer specDealer: Single-Cylinder
Cooling
Liquid-cooledManufacturer specDealer: Liquid
Fuel
GasManufacturer spec
Hours
0 hrs
Seat height
33.3 inManufacturer specDealer: 33.3 in; 845 mm
Wheelbase
50.5 inManufacturer specDealer: 50.5 in; 1283 mm
Ground clearance
11.5 inManufacturer specDealer: 11.5 in; 290 mm
Dry weight
847 lbManufacturer specDealer: 847 lb. (384 kg.)
Wet weight
886 lbManufacturer specDealer: 886 lbs; 402 kg
Towing capacity
1,350 lbManufacturer specDealer: 1350 lb. (612 kg.)
Fuel capacity
4.5 galManufacturer specDealer: 4.5 gal; 17 l
Warranty
6Manufacturer spec
VIN
4XASHY578TA105509
Stock #
P7171
All details from the dealer (42)

Overview

Power Type
Single-Cylinder

Pricing

Warranty (Months)
6Manufacturer spec

Engine

Bore
99 mm; 3.9 inManufacturer spec
Stroke
73.6 mm; 2.9 inManufacturer spec
Compression Ratio
10:1Manufacturer spec
Starter
ElectricManufacturer spec
Carburetion Type
Fuel InjectedManufacturer spec

Transmission

Transmission Type
Continuously Variable (CVT)Manufacturer spec
Reverse
YesManufacturer spec

Drive Line

Driveline Type
Selectable 4X2 / 4X4Manufacturer spec

Technical Specifications

Length
83 in; 2108 mmManufacturer spec
Width
48 in; 1219 mmManufacturer spec
Height
47 in; 1194 mmManufacturer spec

Exterior

Frame
SteelManufacturer spec

Suspension

Front Suspension Type
Independent Double A-ArmManufacturer spec
Front Travel
8.9 in; 226 mmManufacturer spec
Rear Suspension Type
Independent Double A-ArmManufacturer spec
Rear Travel
9.5 in; 241 mmManufacturer spec

Wheels & Tires

Front Tire (Full Spec)
Duro Power Grip: 26 x 8-14Manufacturer spec
Rear Tire (Full Spec)
Duro Power Grip: 26 x 10-14Manufacturer spec

Brakes

Front Brake Type
Hydraulic DiscManufacturer spec
Rear Brake Type
Hydraulic DiscManufacturer spec

Seats

Number Of Seats
1Manufacturer spec

Instrumentation

Speedometer
StandardManufacturer spec
Tachometer
StandardManufacturer spec
Trip Odometer
StandardManufacturer spec

Storage

Capacity
90 lbs; 40.8 kgsManufacturer spec
Capacity
180 lbs; 81.6 kgsManufacturer spec

Lights

Type
LEDManufacturer spec

Glass

Rearview Mirrors
OptionalManufacturer spec
Windshield
OptionalManufacturer spec

Convenience

Heated Hand Grips
OptionalManufacturer spec

Engine

Bore x Stroke
Bore: 3.9 in. (99 mm); Stroke: 2.9 in. (73.6 mm)Manufacturer spec
Fuel System
GasManufacturer spec
Starting System
ElectricManufacturer spec

Chassis

Front Suspension
Independent Double A-ArmManufacturer spec
Front Tires
Duro Power Grip: 26 x 8-14Manufacturer spec
Rear Suspension
Independent Double A-ArmManufacturer spec
Rear Tires
Duro Power Grip: 26 x 10-14Manufacturer spec

Dimensions/Capacities

Machine Dimensions (LxWxH)
L: 83 in. (2108 mm); W: 48 in. (1219 mm); H: 47 in. (1194 mm)Manufacturer spec

Drive Train

Drive Train
Continuously Variable (CVT)Manufacturer spec

General

Odometer
StandardManufacturer spec

Price history

Tracked since Sep 30, 2026 · last checked 3h ago

Price details as printed by the dealer

  1. On Sale$8,399.00
  2. MSRP$10,999.00
  3. Blowout: Save$2,600.00now until 10/01/2026

Throttle does not add these up.

Not enough observations yet — the chart appears after the second crawl of this listing.

Timeline

  1. First seen

    Sep 30, 2026

Market context

Comp set: 2024–2028 Polaris SPORTSMAN 570 TRAIL ONYX BLACK · 7 listings

Median asking
$8,399
across 7 comparable listings
This one
$8,399
0.0% vs median
Days on market
New to Throttle
no sold comps yet
Sold comps
—
none confirmed yet
