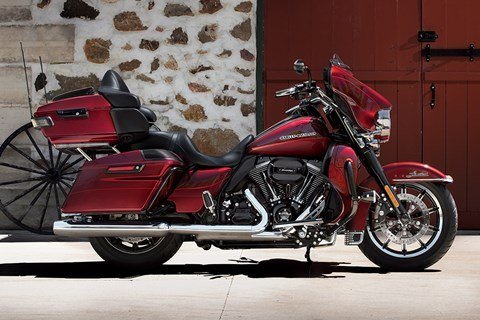

2016 Harley-Davidson Ultra Limited Low — photo 1 of 8
1 / 8

Specs

New or used
Certified pre-owned
Availability
In stock
Colour
Mysterious Red Sunglo / Blackened Red Sunglo
Torque
105.5 lb-ftManufacturer specDealer: 105.5 ft. lbs. (143 Nm) @ 3,750 rpm
Displacement
1,689 ccManufacturer specDealer: 103.1 ci (1,690cc)
Transmission
ManualManufacturer specDealer: 6-speed
Wheelbase
64 inManufacturer specDealer: 64 in. (1,625 mm)
Ground clearance
4.6 inManufacturer specDealer: 4.6 in. (115 mm)
Fuel capacity
6 galManufacturer specDealer: 6 gal. (22.7 l)
Model code
FLHTKL
VIN
1HD1KEL18GB680114
Stock #
HAR680114
All details from the dealer (16)
Model Type
Touring

Brakes/Wheels/Tires

Brakes
Front / Rear: 32 mm, 4-piston fixedManufacturer spec
Wheels
Front / Rear: Contrast chrome impeller cast aluminumManufacturer spec
Tires
Front: BW 130/80B17 65H Rear: BW 180/65B16 81HManufacturer spec

Dimensions

Length
102.4 in. (2,600 mm)Manufacturer spec
Weight
Dry: 861 lbs. (391 kg) Running Order: 896 lbs. (406 kg)Manufacturer spec
Seat Height
Laden: 25.6 in. (652 mm) Unladen: 27 in. (685 mm)Manufacturer spec

Engine

Bore x Stroke
3.87 x 4.38 in. (98.4 x 111.1 mm)Manufacturer spec
Compression Ratio
10:01Manufacturer spec
Gear Ratio
1st: 9.593 / 2nd: 6.65 / 3rd: 4.938 / 4th: 4.0 / 5th: 3.407 / 6th: 2.875Manufacturer spec
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)Manufacturer spec
Exhaust
Chrome, 2-1-2 dual with tapered mufflersManufacturer spec
MPG Rating
42 mpg combined (5.6 l/100 km)Manufacturer spec

Operational

Rake
26°Manufacturer spec
Trail
6.7 in. (170 mm)Manufacturer spec
Capacity
Luggage: 4.7 cu. ft. (0.132 m³)Manufacturer spec

From the dealer's page

We took the Ultra touring experience and lowered it into one easy-handling, smooth-riding, fully-loaded machine.Settle into the low seat for high miles. If you want the full-on Harley-Davidson Ultra Touring experience in a lower form, throw a leg over the Ultra Limited Low. No other full-dress Grand American touring machine puts you closer to the pavement. And every feature of this motorcycle was built to inspire confidence and easy handling. There's a reduced-width primary cover for an easy reach to the ground. Reduced diameter grips for an easy reach to the bars. It's all about being comfortable in the saddle. Because that's what takes you farther.

Price history

Tracked since Oct 4, 2026 · last checked 17h ago

No price history yet — we have checked this listing more than once but have not been able to read a price we can stand behind.

Timeline

  1. First seen

    Oct 4, 2026

Market context

Comp set: 2014–2018 Harley-Davidson Ultra Limited Low · 2 listings

Fewer than three comparable units are indexed, so there is no honest median to compare against yet. We would rather show nothing than a number we cannot stand behind.
